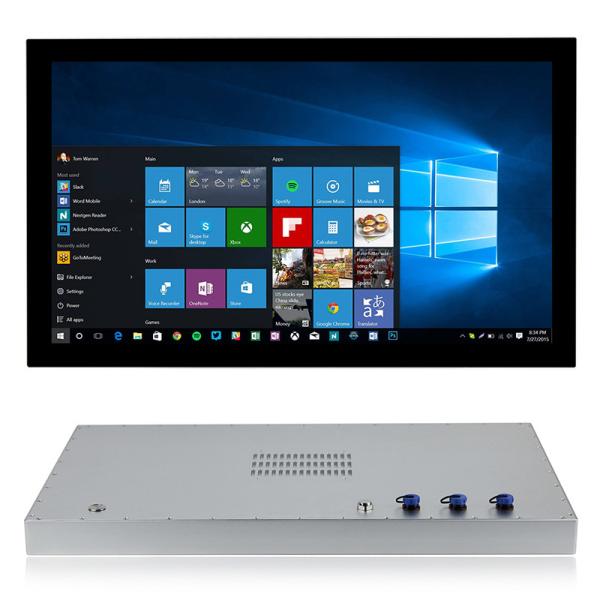

J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

    Buy cheap J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC from wholesalers

    Buy cheap J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC from wholesalers
    • Buy cheap J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC from wholesalers
    • Buy cheap J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC from wholesalers
    • Buy cheap J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC from wholesalers

    J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

    Ask Lasest Price
    Brand Name : Innoyond
    Model Number : WPC-J024WAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

    J1900 24 inch industrial touch panel waterproof IP69k


    1. Product features:
    1. Aluminum Alloy Shell, IP69k Waterproof
    2. 23.8" TFT LCD, Resolution 1920*1080, PCAP Touch
    3. Intel Celeron Quad Core J1900 2.0GHz Industrial Waterproof Panel PC
    4. 1xLAN, 2xCOM, Static Electricity & S Surge Protection
    5. DC 12V~24V / optional(+9V~36V), Overvoltage & Reverse Connection Protection


    WPC-J024WAC

    System

    CPU

    Intel Celeron Quad Core J1900 2.0GHz

    L2 Cache

    2MB

    Chipsets

    Intel Bay Trail SOC

    Memory

    DDR3L 1333MHz 4GB, Up to 8GB

    Harddisk

    1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional

    Graphics

    Intel HD Graphics

    Network

    Intel 82583V 1000 Mbps port

    Audio

    Realtek ACL662 Audio controller

    Operation System

    Windows7 / 8 / 10, Linux, Unix, QNX

    I / O

    VIDEO

    1 x H-DMI ( Optional )

    LAN

    1 x LAN ( Optional )

    USB

    4 x USB ( Optional )

    COM

    2 x RS232 ( Optional )

    Wireless Network

    WiFi + Bluetooth ( Optional )

    Other I/O Interface

    1 x Power Switch

    LCD Panel

    Panel Size

    23.8" FHD LED

    Resolution

    1920 x 1080

    Aspect Ratio

    16:9

    Display Brightness

    350 cd/m2

    Contrast Ratio

    1000:1

    Colors

    16.7M , 74% NTSC

    Backlight Lifetime

    30000 Hr (min.)

    Viewing Angle

    89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

    Touch screen

    Touch Screen Type

    10 point capacitive touch

    Transmittance

    >90%

    Response Time

    <5ms

    Surface Hardness

    ≥6H

    Supply Voltage

    5.0V DC

    Touch Life

    ≧ 3000W

    Institutional

    Material

    Aluminum Alloy Shell

    Color

    Silver / Black ( optional )

    VESA Mounting

    VESA: 100 x 100 mm

    Waterproof Rate

    IP66 / IP69K

    Product Dimension

    583 x 352.5 x 39 mm

    Cut-out Size

    /

    Packing Size

    730 x 220 x 530 mm

    Gross Weight

    18 KG

    Power and Environment

    Operating Temperature

    -10~60°C

    Storage Temperature

    -20~80°C(-22~176°F)

    Relative Humidity

    5%~95%@40°C, non-condensing

    Vibration Range

    5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    External Power Supply

    AC 100 - 240V~50/60Hz,1.5A

    Working Voltage

    DC 12V~24V / optional(+9V~36V)

    Power Consumption

    ≦30W


    J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

    2. FAQ
    1. Are You a factory?
    We are a factory providing OEM/ODM services.
    2. When Can I get an offer?
    We usually make an offer within 12 hours of receipt of your inquiry.
    3. Can I order a sample to check the quality?
    Yes, of course! You can order a sample to check the quality. If the product meets the requirements, the additional sample charge can be refunded in the next order.
    4. Why Us?
    We are a manufacturer and supplier with more than ten years experience. Competitive prices directly from factory suppliers. Excellent design and high quality. Fast Delivery on a global scale. Professional OEM/ODM and personalized customization.
    5. How to order?
    1) . Tell us the model, quantity, color and other special requirements. We will issue a proforma invoice for your approval.
    2) . Production will be arranged upon receipt of your approval and payment or deposit.
    3) . The goods will be delivered as per proforma invoice. What kind of inspection can you provide.
