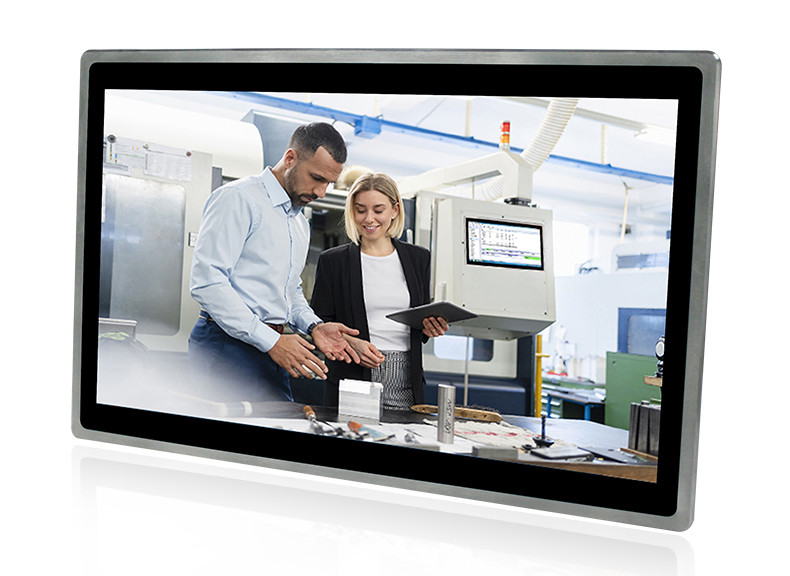

Fanless Industrial Touch Panel PC Dual Lan Pc Vesa Mount 24" 1920 X
1080
1. Aluminum alloy front panel, front panel IP65 waterproof
standard.
2. 24 "TFT LED, resolution 1920 x 1080, capacitive touch.
3. Intel j1900: CPU 2.0 GHz silent fanless industrial touch panel
pc.
4. Two Gigabit network ports, two RS232/422/485 serial ports, 8KV
static electricity and 600W TVS surge protection.
5. Onboard TPM2.0 modules provide maximum hardware security.
6. Wide voltage DC 9V~36V, with overcurrent, overvoltage and
reverse connection protection.
Industrial touch panel pc application:
1. Industrial site can be embedded in the machine, cabinet or
placed on the operating table, do man-machine display operation
interface.
2. used in telecommunication, electric power, multimedia, national
defense, automation equipment, manufacturing and other fields. It
is used as man-machine interface, thin client, PLC and POS
communication and control terminal.
3. Digital hospital as bedside service terminal and outpatient
terminal, improve the level of hospital service and management.
4. Banks, shopping malls, hotels, train stations, buses, subway
stations, parks and other public places to do media players or
inquiry terminals.
| PPC-J024WAC |
| System |
| CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional |
| Graphics | Intel HD Graphics |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian |
| I / O |
| Display | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB2.0 / 1 x USB3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel |
| Panel Size | 24" FHD LED |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 30000 Hr (min.) |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional |
| Material | High-strength Al-alloy, support IP65 |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 |
| Product Dimension | 594 x 377 x 60 mm |
| Cut-out Size | 577 x 359 mm |
| Packing Size | 730 x 200 x 530 mm |
| Gross Weight | 16 KG |
| Power and Environment |
| Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
