    2 LAM 2 COM 10 Inch Industrial Touch PC J1900 With Front Switch / USB

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J010WBC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    2 LAM 2 COM 10 Inch Industrial Touch PC J1900 With Front Switch / USB

    2 LAM 2 COM 10 Inch Industrial Touch PC J1900 with Front Switch and USB


    QYT industrial Panel PC includes all-in-one devices that integrate a high-resolution display, a touch screen and a computer. A wide selection of screen sizes from 8.4" to 24" is available in 4:3 and 16:9 aspect ratio, and select PC performance.


    Key Features :

    1. 10.1" LED , resolution 1280 x 800

    2. Intel Celeron Quad Core J1900 2.0GHz, Multi-Touch PCAP

    3. 4 GB RAM, 64 GB SSD

    4. Customized 4G/5G/WiFi / Bluetooth

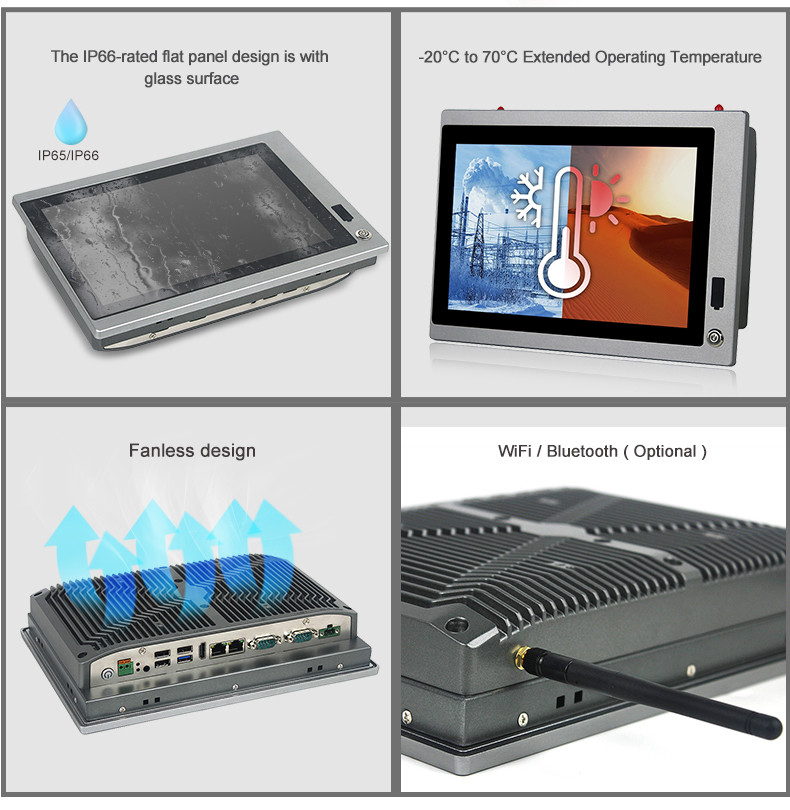

    5. IP66-rated front bezel to deter water and dust ingress

    6. Robustness with wide 9-36 DC input and optional -20°C to 70°C support

    7. Ease of installation with panel and optional VESA mount

    8. support and custom I/O and function expansion


    PPC-J010WBC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB4 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size10.1" Led
    Resolution1280 x 800
    Aspect Ratio16:10
    Display Brightness400 cd/m2
    Contrast Ratio900:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66
    Product Dimension275 x 194 x 58 mm
    Cut-out Size263 x 182 mm
    Packing Size360 x 180 x 320 mm
    Gross Weight4.0 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W

    2 LAM 2 COM 10 Inch Industrial Touch PC J1900 With Front Switch / USB2 LAM 2 COM 10 Inch Industrial Touch PC J1900 With Front Switch / USB


    Application of industrial touch PC:

    • Automotive;
    • Food and beverage;
    • Still;
    • Paper;
    • Glass;
    • Plastic;
    • Water;
    • Oil and gas;
    • Cement;
    • Machine builders

    Packaging Details:

    We usually packed with strong EPE, Foam + Carton(Each two sets packed into one carton). Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.
