    10" LED Industrial Capacitive Touch Panel PC 1280 X 800 With 4G 5G WiFi Optional

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J010WBC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    10" LED Industrial Capacitive Touch Panel PC 1280 X 800 With 4G 5G WiFi Optional

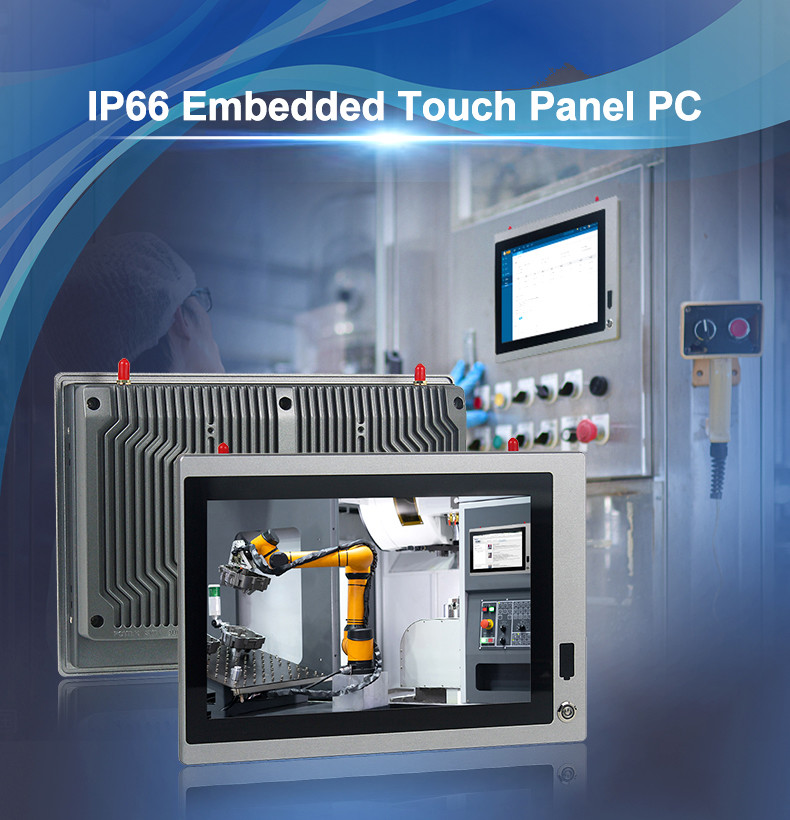

    10" Industrial Capacitive Touch Panel PC 1280 x 800 with 4G 5G WiFi Optional


    PPC-J010WBC is a 10.1 inch fanless touch panel computer. It is powered by Intel Celeron Quad Core J1900 2.0GHz. PPC-J010WBC has a 10.1-inch 1280 x 800 LCD display with a projected capacitive multi-touch or resistive touch optional touchscreen, 400 nits of brightness and LED backlight. Moreover, this compact touch panel computer offers easy access to storage and RAM. The robust industrial touch panel PC has an ultra-slim housing for use in space-constrained environments. It can operate reliably in harsh environments with its wide operating temperature of -20°C to +70°C. It is a cost-effective solution to achieve a high degree of stability and adaptability for use in multimedia kiosks or as a human machine interface (HMI) for smart manufacturing and rugged retail fields.


    Product Highlights

    1. High-quality aluminum housing


    2. Display sizes from 8″ to 24″


    3. Powerful Intel Core J1900, i3, i5 or i7 CPU


    4. Front IP66 protection


    5. TPM 2.0, DC IN 9V~36V


    6. Optional W-LAN, 4G/5G/WIFI/Bluetooth, extended temperature range, high brightness


    7. Individual interfaces and adjustments possible


    PPC-J010WBC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB4 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size10.1" Led
    Resolution1280 x 800
    Aspect Ratio16:10
    Display Brightness400 cd/m2
    Contrast Ratio900:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle85 / 85 / 85 / 85 (CR10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66
    Product Dimension275 x 194 x 58 mm
    Cut-out Size263 x 182 mm
    Packing Size360 x 180 x 320 mm
    Gross Weight4.0 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption30W

    10" LED Industrial Capacitive Touch Panel PC 1280 X 800 With 4G 5G WiFi Optional10" LED Industrial Capacitive Touch Panel PC 1280 X 800 With 4G 5G WiFi Optional10" LED Industrial Capacitive Touch Panel PC 1280 X 800 With 4G 5G WiFi Optional


    Installation Method:
    1: Embedded (Recommended)


    2: Wall-mounted


    3: Desktop


    4: Cantilevered


    5: Other Installation Methods


    Included in the delivery


    1. Power Supply (see Power section)
    2. Short Installation Manual
