J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof

    Buy cheap J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof from wholesalers

    Buy cheap J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof from wholesalers
    • Buy cheap J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof from wholesalers
    • Buy cheap J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof from wholesalers

    J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J024WAC
    Certification : CE, FCC, RoHS, IP65
    Price : NegotiabNegotiablele
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof

    Capacitive Touch 24 Inch J1900 CPU Industrial Panel PC with Front IP66 Waterproof
    Our industrial computers are used in a variety of industries and fields. Rack PC, Desktop Industrial PC, Wall Mounted Industrial PC, Embedded PC or Embedded Box PC with absolute reliability. Our products are also certified by CE, FCC, RoHS, IP65, IP69k.
    The components used meet special requirements and are highly protected against dust, temperature fluctuations and moisture. From configuration and equipment to mechanical adjustments, to design, branding and software. Every Industrial PC and every Embedded PC undergoes a documented burn-in stress test before delivery to provide the highest possible reliability. With more than ten years of experience, we have been constantly striving for innovation and quality.

    Key Features
    1. 23.8" FHD LED , resolution 1920 x 1080

    2. Intel Celeron Quad Core J1900 2.0GHz, Multi-Touch PCAP

    3. 4 GB RAM, 64 GB SSD

    4. OEM/ODM 4G/5G/WiFi / Bluetooth

    5. IP66-rated front bezel to deter water and dust ingress

    6. Robustness with wide 9-36 DC input and optional -20°C to 70°C support

    7. Ease of installation with panel and optional VESA mount

    8. support and custom I/O and function expansion

    PPC-J024WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0

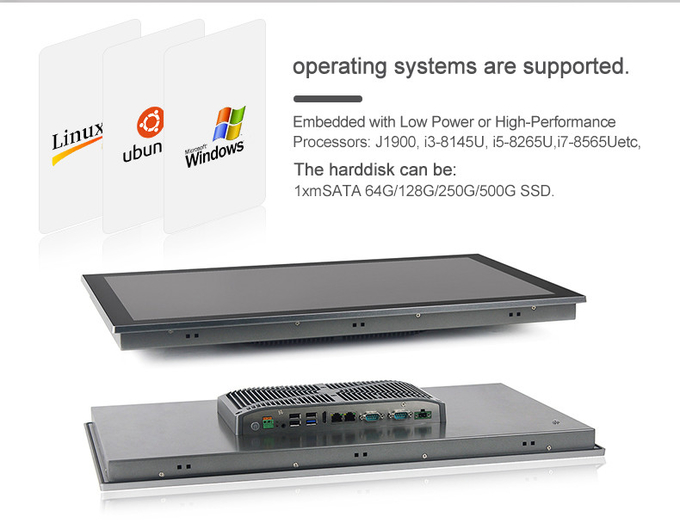

    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / ODisplay1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size23.8" FHD LED
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness350 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65 / IP66
    Product Dimension585 x 354.5 x 63 mm
    Cut-out Size568 x 337 mm
    Packing Size730 x 200 x 530 mm
    Gross Weight16 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption35W



    J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 WaterproofJ1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof
    J1900 CPU Industrial Panel PC Capacitive Touch 24 Inch Front IP66 Waterproof


    Installation Method:
    1: Embedded (Recommended)
    2: Wall-mounted
    3: Desktop
    4: Cantilevered
    5: Other Installation Methods


    Our Services:
    1.100% quality satisfaction guarantee,any further assistance just drop us an email or ring us up anytime.

    2.Your email will be replied in 24hrs.

    3.Well-trained and experienced staffs to answer all your inquires in fluent English.

    4.Arrange Shipments any port in China.
