IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC

    Buy cheap IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC from wholesalers

    Buy cheap IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC from wholesalers
    • Buy cheap IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC from wholesalers
    • Buy cheap IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC from wholesalers
    • Buy cheap IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC from wholesalers

    IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-O156WAC
    Certification : CE, FCC, RoHS, IP66, IP69K
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC

    IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC

    About US:

    QYT is a global leader in industrial automation and HMI Panel PCs. We provide Panel PCs for embedded automation computers, automation controllers, remote i/o modules, and custom data acquisition solutions.

    QYT's Panel PCs are available ready to run with the Operating System installed on a flash disk or hard drive. Apply power and watch either the Windows or Linux User Interface appear on the vivid color LCD. Interact with the PPC using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.


    Waterproof Touch Computers are designed to withstand extreme conditions and operate reliably in the harshest industrial environments. These devices are protected from water, dust and dirt, abrasive substances and extreme temperatures. Designed and engineered to operate in tough 24/7 continuous operation, these units are required for harsh environments.

    Engineered with a strong housing and with IP67 rated protected connectors, water resistant computers are made to withstand tough and rugged environments, with models for both indoors and out.


    Product Advantage

    1. Wide range: -20°C to 70°C working temperature range.

    2. Industrial LCD panel is wide viewing angle with high nits and true color.

    3. Motherboard is high performance and 7x24 continuous operation available.

    4. Heat sink in back case great for heat dissipation and beautiful appearance.

    5. Working voltage is wide range 12-24V, suitable for various industrial applications.

    6. Symmetric design can be utillized in portrait mode with style.


    Applications

    The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.



    WPC-O156WAC
    SystemCPUIntel Core i3-6100U Dual Core 2.4GHz
    L2 Cache3MB
    ChipsetsIntel 6th Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 520
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB4 x USB2.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size15.6" Led
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness450 cd/m2
    Contrast Ratio800:1
    Colors16.2M , 72% NTSC
    Response Time13/12 (Typ.)(Tr/Td) ms
    Viewing Angle85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type10 point capacitive touch
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )

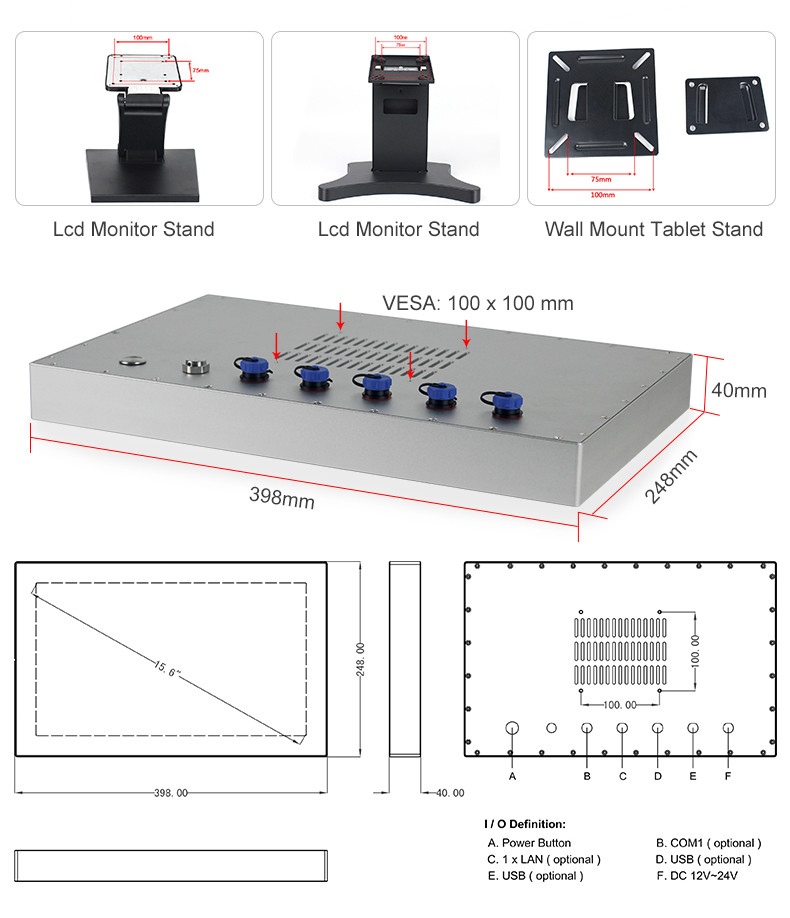

    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66 / IP69K
    Product Dimension398 x 248 x 40 mm
    Cut-out Size/
    Packing Size460 x 180 x 400 mm
    Gross Weight7.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W

    IP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PCIP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PCIP67 Waterproof Sunlight Readable Touchscreen Core I3 Industrial Touch Screen Panel PC

    Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device
