19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC

    Buy cheap 19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC from wholesalers

    Buy cheap 19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC from wholesalers
    • Buy cheap 19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC from wholesalers
    • Buy cheap 19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC from wholesalers

    19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-O019SAC
    Certification : CE, FCC, RoHS, IP66, IP69K
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC

    19" Customized Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC

    About US
    We offer a wide range of specialized industrial grade all-in-one multi-touch panel PCs and HMIs that find their applications such as Internet of Things (IoT), M2M, HMI, SCADA, or MES applications. Our range of panel pcs include: Android, Windows or Linux OS based systems with wide range of display sizes from 7" to 24". Depending on the use case, models can be ordered as front waterproof (IP65) only or full waterproof (IP69K) for outdoor.


    Our rugged IP69K full water and dust proof line of industrial panel PCs are designed for outdoor and factory environments. The full waterproof models can be used stand alone mounted on a wall and may be used in environments where the unit will be exposed to elements and water splashing. These units can be customized to support specialized high brightness sunlight readable screens and designed to operate under wide temperature ranges. They can be ordered with a variety of mounting options including open-frame models that can be easily integrated and embedded in kiosks and other media consoles or standard VESA mounting 75x75 or 100x100.



    Industrial Panel PCs from QYT are deployed fully configured with your choice of processor, memory, storage, I/O ports, and operating system. Designed for industrial applications, these touch screen panel PCs are market certified.


    Waterproof Touch Computers are designed to withstand extreme conditions and operate reliably in the harshest industrial environments. These devices are protected from water, dust and dirt, abrasive substances and extreme temperatures. Designed and engineered to operate in tough 24/7 continuous operation, these units are required for harsh environments.
    Engineered with a strong housing and with IP67 rated protected connectors, water resistant computers are made to withstand tough and rugged environments, with models for both indoors and out.


    WPC-O019SAC
    SystemCPUIntel Core i3-6100U Dual Core 2.4GHz
    L2 Cache3MB
    ChipsetsIntel 6th Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 520
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB2 x USB2.0 / 2 x USB3.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size19" Led
    Resolution1280 x 1024
    Aspect Ratio4:3
    Display Brightness450 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 90% NTSC
    Response Time7/3 (Typ.)(Tr/Td) ms
    Viewing Angle85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type10 point capacitive touch
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66 / IP69K

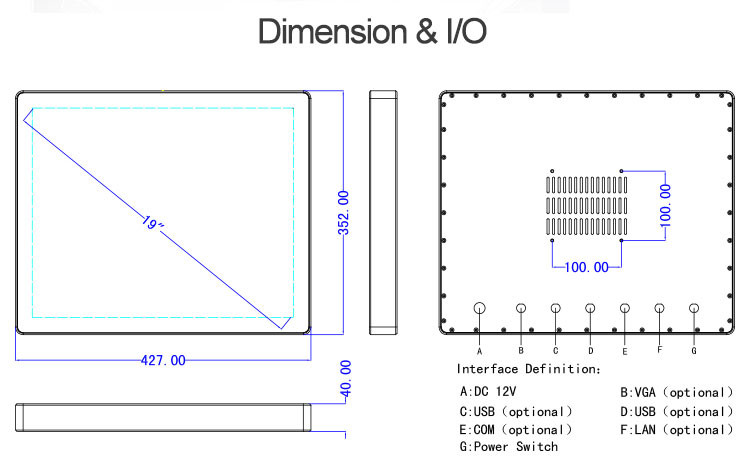

    Product Dimension427 x 352 x 40 mm
    Cut-out Size/
    Packing Size500 x 180 x 450 mm
    Gross Weight8.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W


    19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC19" Full Sealed Daylight Readable IP65 IP67 Industrial Waterproof Touch Screen Panel PC

    Packing List

    WPC-O019SAC Waterproof Panel PC


    Waterproof VGA/RS232/LAN/USB/COM cables


    1x Utility DVD Driver


    1x Power Adaptor

    Areas of Application:
    Food Processing
    Dairy Production
    Pharmaceutical Manufacturing
    Agriculture and Horticulture
    Chemical plants
    Mining
    Transport
    Forestry
    Interactive Kiosks

    All these applications feature extreme conditions for computer operation including condensation, steam, liquid spray, chemicals, dust and dirt. To make sure that your computer will serve you for a long time, choose Waterproof PCs from QYT. We offer a wide range of IP68 and IP69K options and can find a solution to suit your business.
