    Panel Mount IP65 Waterproof Dustproof HMI Industrial Touch PC For Control Cabinet

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J012WAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    Panel Mount IP65 Waterproof Dustproof HMI Industrial Touch PC For Control Cabinet

    12.1 Inch Panel Mount IP65 Waterproof Dustproof HMI Industrial Touch PC For Control Cabinet

    About US

    For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.


    The Advantage for QYT Industrial PC:

    1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.

    2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.

    3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.

    4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.

    5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.

    6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.


    PPC-J012WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size12.1" Led
    Resolution1280 x 800
    Aspect Ratio16:10
    Display Brightness450 cd/m2
    Contrast Ratio700:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65

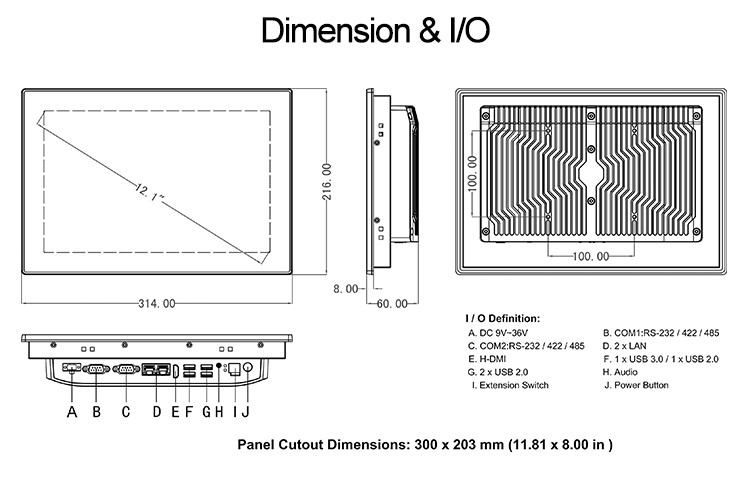

    Product Dimension314 x 216 x 60 mm
    Cut-out Size300 x 203 mm
    Packing Size450 x 170 x 350 mm
    Gross Weight5 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W

    Panel Mount IP65 Waterproof Dustproof HMI Industrial Touch PC For Control CabinetPanel Mount IP65 Waterproof Dustproof HMI Industrial Touch PC For Control CabinetPanel Mount IP65 Waterproof Dustproof HMI Industrial Touch PC For Control Cabinet


    Industrial Panel PC Features:

    Rated For Extreme Temperatures

    Intel J1900, 8th Gen Core i3/i5/i7 Processors

    Less than 2% Failure Rate

    Responsive Touch Glass

    Fanless Design & Rugged Construction


    Our Advantage

    1. Experience

    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


    2. Wide products line

    7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.


    3. Customization functions

    It offers rich of interface to meet csutomers needs.


    4.Widely useage environment

    QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
