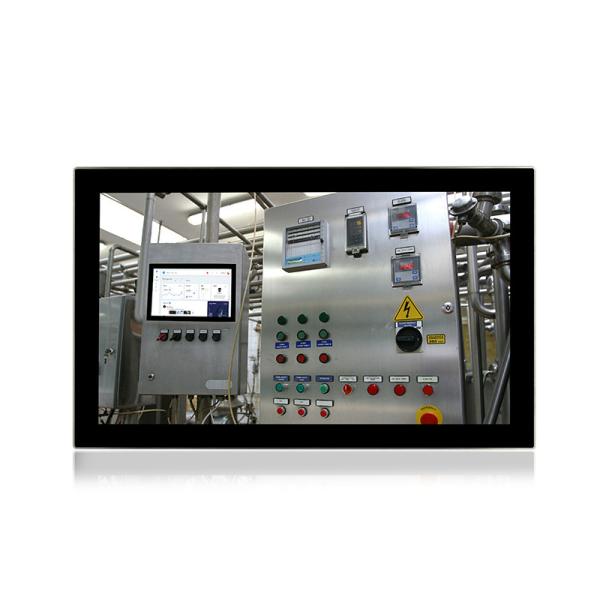

    Industrial Computer All In One Touch Screen Panel PC PCAP Touch 4gb 64gb

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J215WCC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    Industrial Computer All In One Touch Screen Panel PC PCAP Touch 4gb 64gb

    Industrial Computer All In One Touch Screen Panel Pc Pcap 4gb 64gb

    All-in-one Panel PC features fanless design and rich I/O expansion enhancing efficiency for harsh & comprehensive industrial system integration.


    Industrial Panel PCs Built for Long-Term Operation in the Most Demanding Work EnvironmentsBuilt to reliably withstand the rigors of long term operation in even the most extreme work environments, Teguar’s industrial touchscreen panel PCs easily handle vibration, moisture, water, shock, and dust. Thanks to a fanless cooling system, these panel mountable pcs deliver reliable and quiet productivity 24/7. The interior of each industrial touchscreen PC is comprised of industrial-grade components designed to stand the test of time operating in harsh environments. The touchscreens and front bezels are IP65 waterproof rated and carry a NEMA 4X protection rating.

    PPC-J215WCC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / ODisplay1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size21.5" FHD LED
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness400 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialStainless Steel Panel + Sheet Metal Painting Treated Back Shell
    ColorSilver
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66
    Product Dimension538 x 330 x 60 mm
    Cut-out Size520 x 312 mm
    Packing Size630 x 190 x 480 mm
    Gross Weight12 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W
