Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC

    Buy cheap Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC from wholesalers

    Buy cheap Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC from wholesalers
    • Buy cheap Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC from wholesalers
    • Buy cheap Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC from wholesalers
    • Buy cheap Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC from wholesalers

    Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J215WAR
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC

    Resistive Touch Screen Dual Lan 1000nits High Brightness 24v Panel PC Industrial Outdoor 21.5"


    About US:

    QYT is a global leader in industrial automation and HMI Panel PCs. We provide Panel PCs for embedded automation computers, automation controllers, remote i/o modules, and custom data acquisition solutions.

    QYT's Panel PCs are available ready to run with the Operating System installed on a flash disk or hard drive. Apply power and watch either the Windows or Linux User Interface appear on the vivid color LCD. Interact with the PPC using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.


    INDUSTRIAL TOUCH PANEL PCS

    Fanless Industrial Touch Screen PCs

    Unlike traditional enterprise all-in-one PCs, industrial panel PCs are engineered with industrial grade components to withstand the harshest environments. VESA mountable and touchscreen capable, our panel PCs are ready to be embedded and integrated into virtually any industrial environment, even outdoors. Fanless cooling helps protect internal components from dust and debris that typically damages computers in industrial areas. QYT's panel PCs are also customizable with multiple legacy ports and expansion slots to ensure their versatility and ability to be adapted to any job.


    Industrial Touch Panel PC Features:

    1. 21.5" TFT LED, resolution 1920*1080, 5 wire resistive touch
    2. Intel Celeron Quad Core J1900 2.0GHz
    3. 4GB/8GB RAM, 64G SSD / (128G / 250G / 500G SSD) optional
    4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
    5. Operating System: Win7/8/10/Linux/Ubuntu
    6. DC9V~36V Input

    7. TPM 2.0

    8. -20~70°C Operating Temperature


    PPC-J215WAR
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / ODisplay1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size21.5" FHD LED
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness400 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 Wire Resistive touch
    Transmittance>80%
    Response Time<10ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 3500W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65/IP66

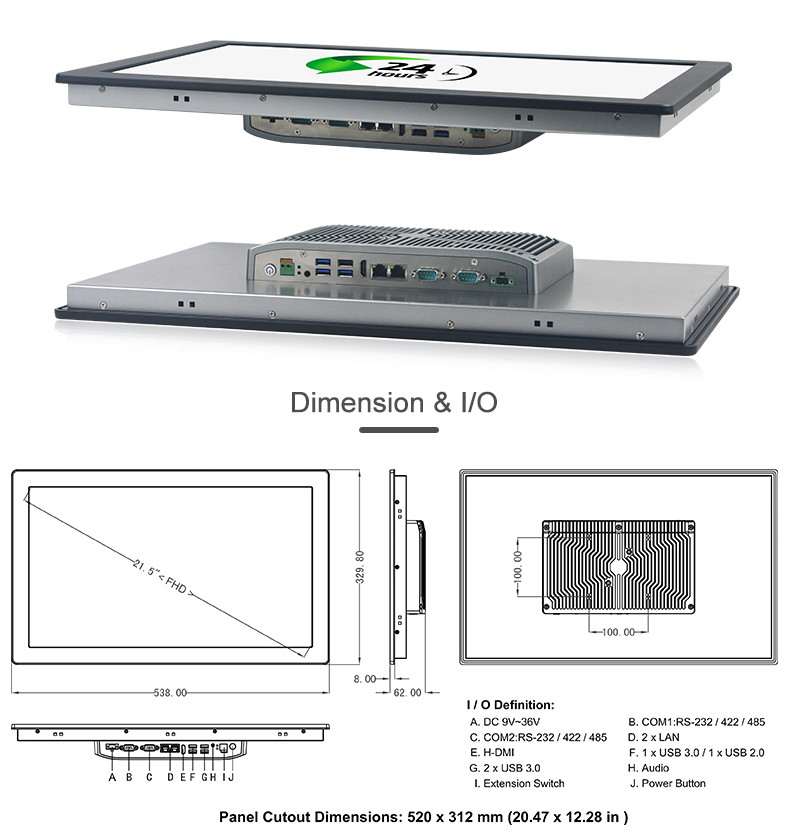

    Product Dimension538 x 330 x 62 mm
    Cut-out Size520 x 312 mm
    Packing Size630 x 190 x 480 mm
    Gross Weight12 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦40W

    Dual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PCDual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PCDual Lan 1000nits Waterproof Resistive Touch Screen 24V Industrial 21.5" Outdoor Panel PC


    What is an industrial Panel PC?

    An Industrial panel PC is an all-in-one computer manufactured with industrial grade components and energy-efficient fanless cooling systems, making it extremely rugged, similar to an industrial mini PC. Designed to operate reliably in harsh industrial and outdoor environments, industrial touch screen PCs withstand vibration, shock, exposure to moisture, dust, extreme temperatures and temperature fluctuations. Enclosed or open frame, they are highly customizable, durable and reliable. A QYT Industrial panel PC has a less than 2% fail rate and a 3 - 5 year product life cycle.


    OEM/ODM
    1. size from 7''-24'' available
    2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
    3. Capacitive touch / Resistive touch or without touch
    4. 1000nits, 1500nits high brightness for sunlight readable
