    VGA DVI IP69K Lcd Touch Screen Monitor 450cd/m2 Industrial Lcd Monitor

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPM-H012WAR
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    VGA DVI IP69K Lcd Touch Screen Monitor 450cd/m2 Industrial Lcd Monitor

    Outdoor IP69K full Waterproof Lcd Touch Screen Monitor 12 Inch Industrial Lcd Monitor

    Feature

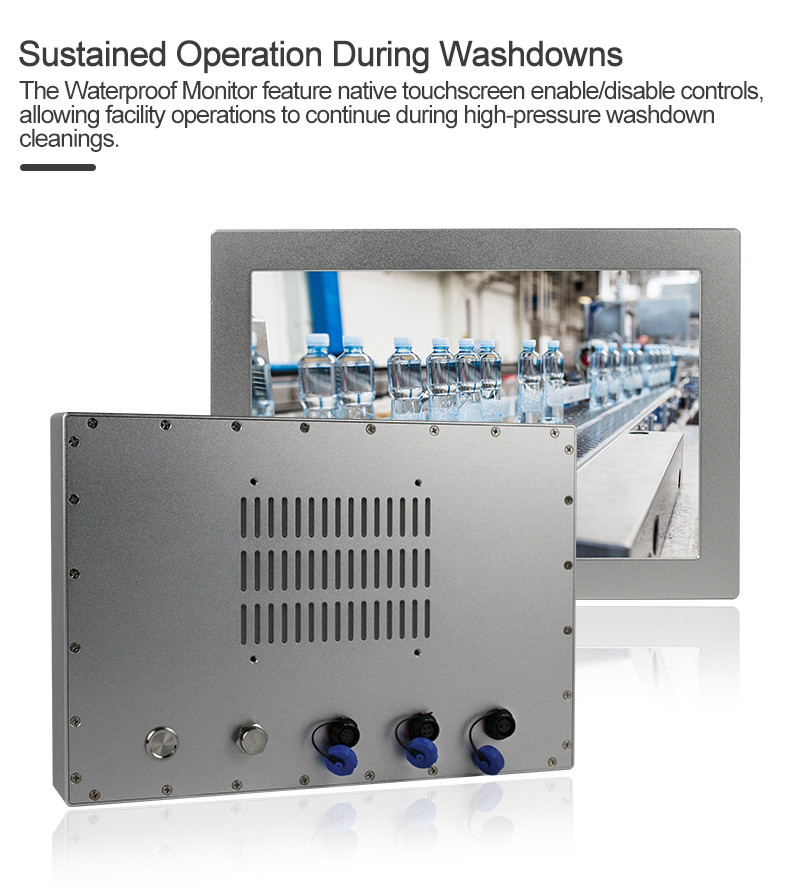

    This is a Aluminum Alloy IP68 waterproof Monitor, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.

    1. 12.1" industrial touch monitor,
    2. Adopt 5 wire Resistive touch


    3. HDMI/VGA/DVI multiple signals input supported

    4. DC12V Input, (+9V~36V) wide voltage input optional

    5. IP67 / IP68 / IP69K Waterproof

    6. 1000nits, 1500nits brightness optional

    7. VESA mounting

    8. Sturable rugged enclosure which is for harsh environment


    WPM-H012WAR
    LCD PanelPanel Size12.1" Led
    Resolution1280 x 800
    Aspect Ratio16:10
    Display Brightness450 cd/m2
    Contrast Ratio700:1
    Colors16.7M , 74% NTSC
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeResistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    I / OVGA1 x VGA ( optional )
    H-DMI1 x H-DMI ( optional )
    DVI1 x DVI ( optional )
    USB1 x Touch USB
    Other I/O Interface1 x Power Switch
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP67 / IP68 / IP69K
    Product Dimension312 x 214 x 42 mm
    Cut-out Size/
    Packing Size450 x 170 x 350 mm
    Gross Weight7.0 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)



    VGA DVI IP69K Lcd Touch Screen Monitor 450cd/m2 Industrial Lcd MonitorVGA DVI IP69K Lcd Touch Screen Monitor 450cd/m2 Industrial Lcd Monitor
    Application
    The waterproof monitor is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.


    Our Advantage

    1. Experience

    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


    2. Wide products line

    QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.


    3. Customization functions

    Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.


    4.Widely useage environment

    QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
