    400cd/M2 AC240V Industrial Touch Screen Monitor 17.3" VESA 100X100

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PM-H173WAC
    Certification : CE, FCC, RoHS, IP68, IP69K
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    400cd/M2 AC240V Industrial Touch Screen Monitor 17.3" VESA 100X100

    16:9 1920 X 1080 17.3" Ultra Thin Touch Screen Monitor VESA 100 X 100

    Feature

    The industrial touch monitor is ideal for applications such as monitoring equipment, supervisory controller, process control systems, CNC machinery control, numerical control device and industrial automation.

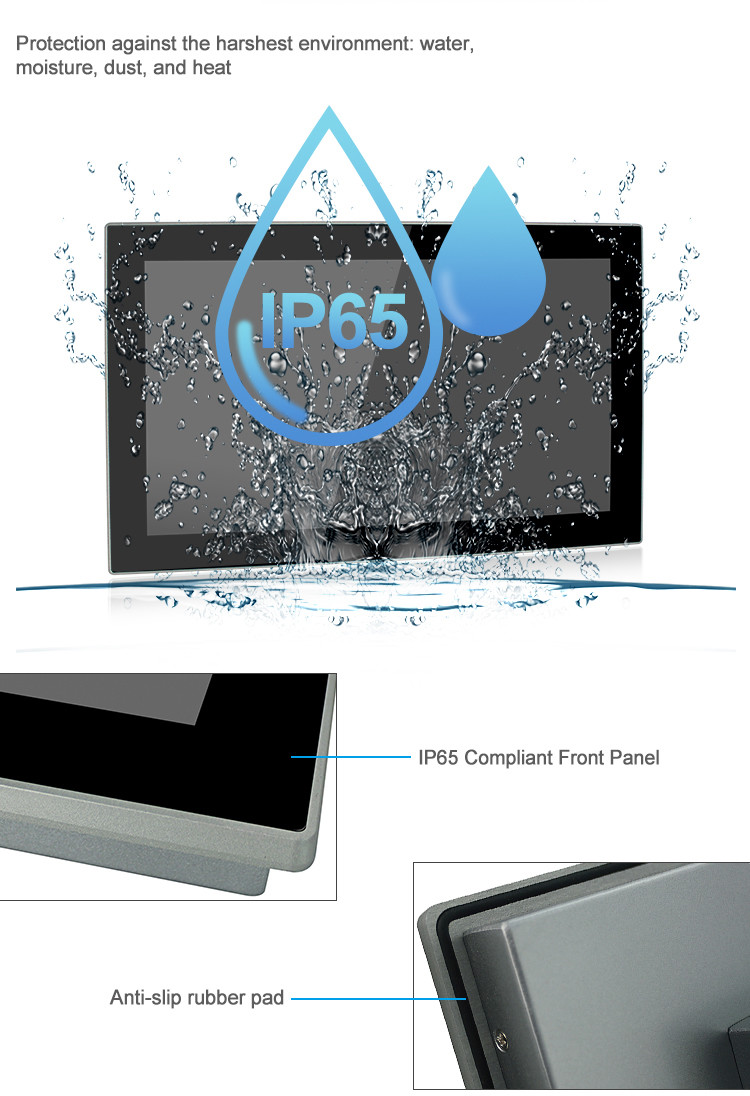

    1. Aluminum alloy structure on the front panel, front panel IP65 waterproof standard.
    2.17.3" TFT LED, resolution 1920 x 1080, capacitive touch.
    3. The installation method: embedded installation/VESA installation.
    4. Support HDMI/VGA/DVI a variety of signal input.
    5. DC 12 v power input, optional (+ 9 v ~ 36 v) wide voltage input.

    PM-H173WAC
    LCD PanelPanel Size17.3" FHD Led
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness400 cd/m2
    Contrast Ratio600:1
    Colors16.7M , 74% NTSC
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    I / OVGA1 x VGA
    H-DMI1 x H-DMI
    DVI1 x DVI
    USB1 x Touch USB
    Other I/O Interface1 x OSD Control Key
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65 / IP66
    Product Dimension441 x 274 x 55 mm
    Cut-out Size427 x 260 mm
    Packing Size500 x 180 x 450 mm
    Gross Weight8 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)

    400cd/M2 AC240V Industrial Touch Screen Monitor 17.3" VESA 100X100400cd/M2 AC240V Industrial Touch Screen Monitor 17.3" VESA 100X100400cd/M2 AC240V Industrial Touch Screen Monitor 17.3" VESA 100X100


    Advantages

    1. Full Material is aluminium alloy, it's very sturdy and durables.


    2. Symmetric design can be utillized in portrait mode with style.


    3. Industrial LCD panel and touchscreen is industrial grade, high nits, true color and suitable for poor working enviroment


    4. Signal ports is VGA, DVI and HDMI, suitable for different applications.


    5. -20C to +70°C Wide temperature support.


    6. Accept customization


    FAQ

    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.

    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.

    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.

    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
