    800x600 TPM2.0 Industrial Touch Panel PC Windows J1900 10 Inch GPIO Port

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J010SAR
    Certification : CE, FCC, RoHS, IP68, IP69K
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    800x600 TPM2.0 Industrial Touch Panel PC Windows J1900 10 Inch GPIO Port

    Industrial Embedded 10 Inch Pc Touch Screen Windows J1900 800 X 600

    Features:

    1. Aluminum alloy panels, front panel IP65 waterproof standard.
    2. 10.4" TFT LED, resolution 800 x 600, Resistive touch.
    3. CPU: Intel j1900 2.0 GHz tablet silent no fan industry.
    4. Two gigabit front-end ports, two serial RS232/422/485, 8 kv static and 600 w TVS surge protection.
    5. The onboard TPM2.0 modules provide maximum security hardware.
    6. Wide voltage DC 9v ~ 36v, over-current, over-voltage and reverse connect protection.


    Onboard Intel Celeron J1900/7th/8th Gen.Core i3/i5/i7 CPU

    Onboard DDR3 4GB Memory / Optional SODIMM SKU

    LCD+HDMI Output, Support Dual view/Simultaneous display

    Fanless Operation

    IP65 Front Bezel

    Wide DC Support 9 ~ 36V

    GPIO Port

    All Aluminum Housing with Heatsink


    Specification

    PPC-J010SAR
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size10.4" Led
    Resolution800 x 600
    Aspect Ratio4:3
    Display Brightness350 cd/m2
    Contrast Ratio800:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeResistive touch
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension275 x 222 x 58 mm

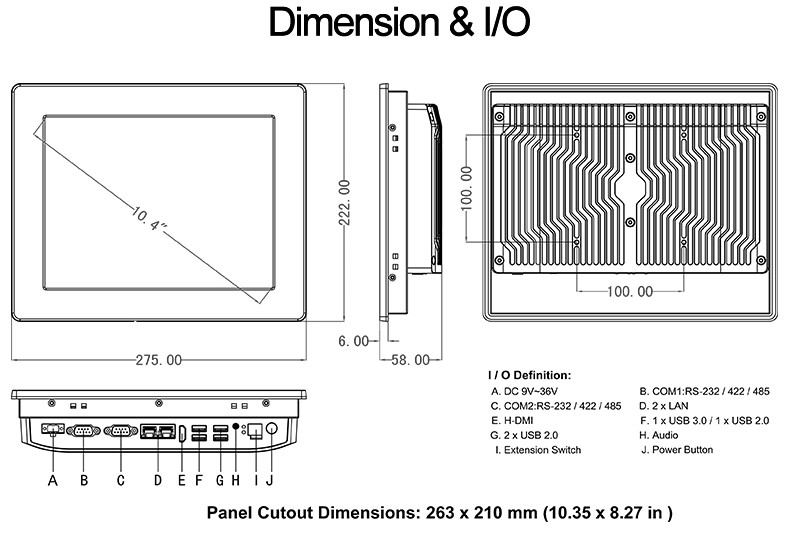

    Cut-out Size263 x 210 mm
    Packing Size360 x 180 x 320 mm
    Gross Weight4.0 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W

    800x600 TPM2.0 Industrial Touch Panel PC Windows J1900 10 Inch GPIO Port800x600 TPM2.0 Industrial Touch Panel PC Windows J1900 10 Inch GPIO Port800x600 TPM2.0 Industrial Touch Panel PC Windows J1900 10 Inch GPIO Port

    Advantages:
    1. High quality products
    2. Factory reasonable prices
    3. Sensitive touch screen
    4. CE/FCC/RoHS certificates passed
    5. OEM/ODM service available
    6. Professional and Effective Sales Team serves you

    1. Experience .


    FAQ

    1. Q: Are you a manufacturer or trading company?

    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

    2. Q: Do you provide ODM/OEM or customized service?

    A: Yes,we support OEM&ODM service, let you get the products you want exactly.

    3. Q: What certifications do you have?

    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

    4. Q: How long is the warranty?

    A: Our factory promised warranty is 1 year.

    5. Q:What is the lead time?

    A: 3 business days for samples order, 15 business days for mass production.

    6. Q: What is the MOQ?

    A: Sample testing is acceptable, the price is negotiable for bulk order.
