IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA

    Buy cheap IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA from wholesalers

    Buy cheap IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA from wholesalers
    • Buy cheap IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA from wholesalers
    • Buy cheap IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA from wholesalers
    • Buy cheap IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA from wholesalers

    IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J024WAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA

    Customized J1900 Quad Core Capacitive Touch AiO PC IP65 Waterproof 24 Inch

    Feature

    The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.

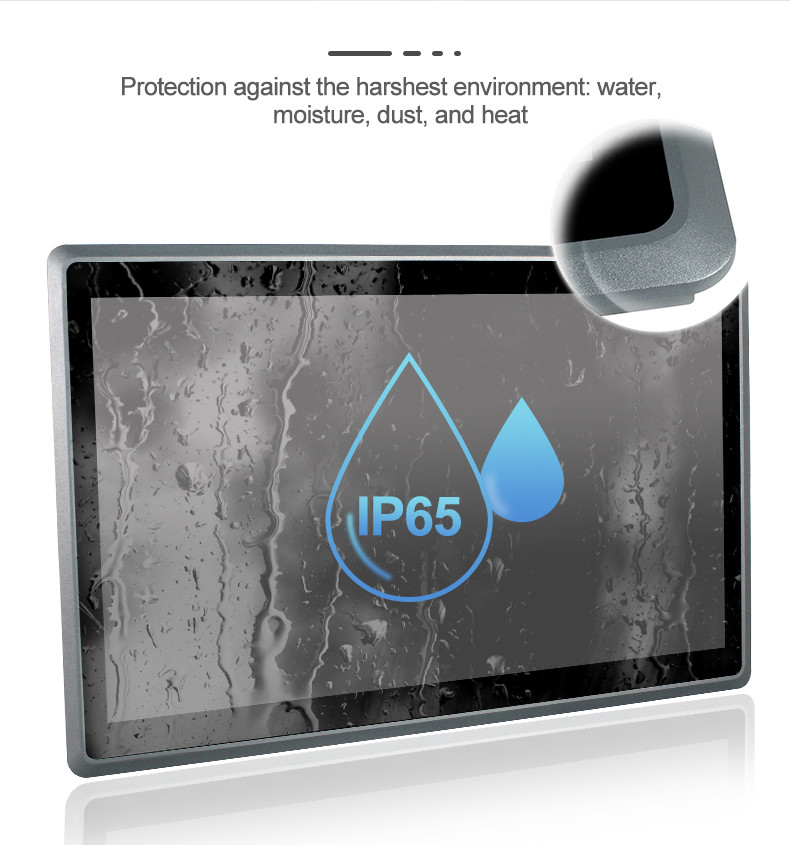

    1. Front IP65 waterproof

    2. 24" TFT LED, resolution 1920*1080, 10 points capacitive touch

    3. Intel j1900 CPU:2.0GHz silent fanless industrial panel PC

    4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection

    5. Built-in TPM2.0 for Hardware-based Security

    6. DC 9~36V, overcurrent, overvoltage & reverse connection protection

    PPC-J024WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / ODisplay1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size24" FHD LED
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness250 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension594 x 377 x 60 mm
    Cut-out Size577 x 359 mm
    Packing Size730 x 200 x 530 mm
    Gross Weight16 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦35W


    IP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESAIP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESAIP65 Waterproof AiO Capacitive Touch PC 24 Inch J1900 Quad Core VESA


    Advantages:

    1. High quality products

    2. Factory reasonable prices

    3. Sensitive touch screen

    4. CE/FCC/RoHS certificates passed

    5. OEM/ODM service available

    6. Professional and Effective Sales Team serves you.


    Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device
