    24" IP69K Pcap Waterproof Touch Screen Pc Fanless VGA With GbE LAN

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-J024WAC
    Certification : CE, FCC, RoHS, IP66, IP69K
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

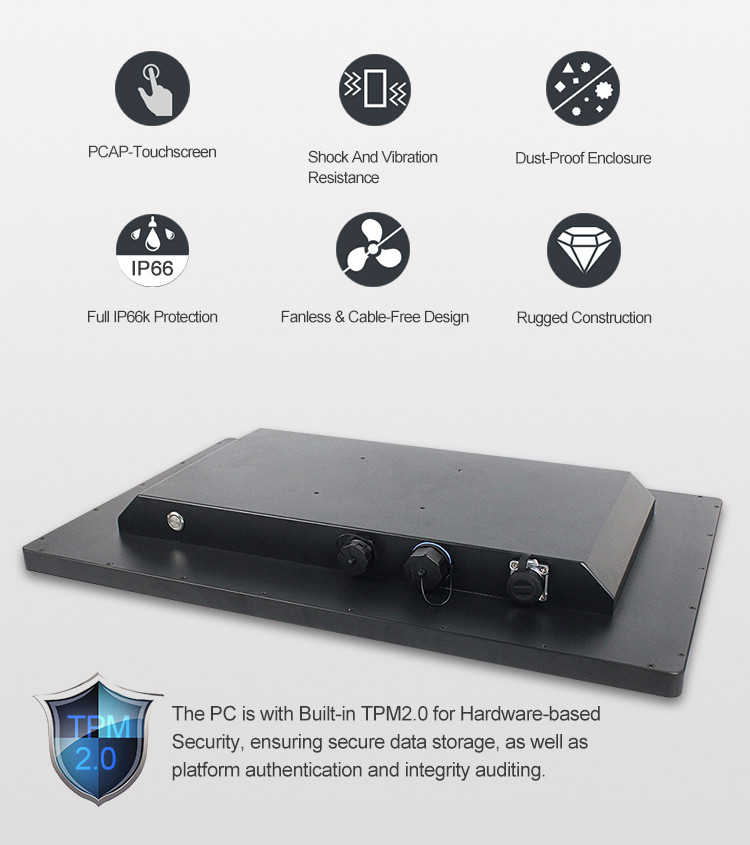

    24" IP69K Pcap Waterproof Touch Screen Pc Fanless VGA With GbE LAN

    24" fully IP69K rated waterproof pcap touch screen panel pc fanless with GbE LAN

    Feature
    The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.


    1.24" TFT LED, resolution 1920*1080, capacitive touch


    2. Intel Bay trail j1900 CPU: 2.0GHz

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage input optional

    6. Wide range: -20°C to 70°C working temperature range.


    7. CE, FCC, RoHS, IP69K Compliance

    WPC-J024WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / OHDMI1 x H-DMI ( Optional )
    LAN2 x LAN ( Optional )
    USB3 x USB2.0 / 1 x USB3.0 ( Optional )
    COM2 x RS-232 / 422 / 485 ( Optional )
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size24" FHD LED
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness250 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorBlack
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66

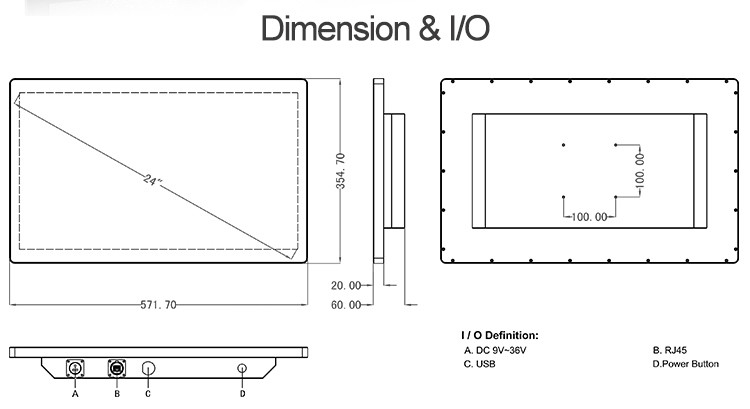

    Product Dimension572 x 355 x 60 mm
    Cut-out Size
    Packing Size730 x 200 x 530 mm
    Gross Weight16 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦35W

    24" IP69K Pcap Waterproof Touch Screen Pc Fanless VGA With GbE LAN24" IP69K Pcap Waterproof Touch Screen Pc Fanless VGA With GbE LAN24" IP69K Pcap Waterproof Touch Screen Pc Fanless VGA With GbE LAN24" IP69K Pcap Waterproof Touch Screen Pc Fanless VGA With GbE LAN

    Product Advantage


    1. It can reduce product and labor cost, with the unparalleled accuracy and repeatability;


    2. It can ensure the quality and process control;


    3. Superior information processing capabilities and advanced computer control systems;


    4. The application of advanced robots and the integration of vision technology;


    Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device


    Our Advantage

    1. Experience

    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


    2. Wide products line

    7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.


    3. Customization functions

    It offers rich of interface to meet csutomers needs.


    4.Widely useage environment

    QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
