    Tpm Aio Touchscreen Pc

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J012WAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

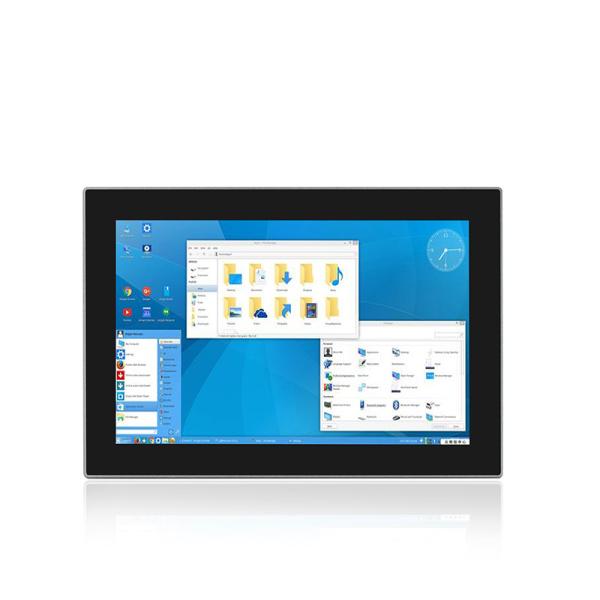

    Tpm Aio Touchscreen Pc

    12 inch panel mount tpm industrial all in one touchscreen pc with 2 x RS-232 / 422 / 485

    Feature

    PPC-J012WAC is a cost-effective industrial grade Panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.


    The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.


    1. 12" TFT LED, resolution 1280*800, capacitive touch


    2. Intel Celeron Quad Core J1900 2.0GHz


    3. 4GB RAM, 64G SSD


    4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)


    5. Operating System: Win7/8/10/Linux/Ubuntu


    6. DC9V~36V Input


    7. TPM 2.0


    8. -20~70°C Operating Temperature


    PPC-J012WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size12.1" Led
    Resolution1280 x 800
    Aspect Ratio16:10
    Display Brightness450 cd/m2
    Contrast Ratio700:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension314 x 216 x 60 mm
    Cut-out Size300 x 203 mm
    Packing Size450 x 170 x 350 mm
    Gross Weight5 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W

    Tpm Aio Touchscreen PcTpm Aio Touchscreen PcTpm Aio Touchscreen Pc


    Advantage

    1. Cordless motherboard design, high-end industrial panel PC


    2. Fully enclosed design, the whole PC is dust-proof.


    3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.


    4. Industrial LCD panel, wide viewing angle, high nits, true color.


    5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with tempered glass for vandal-proof.


    6. 9V-36V wide voltage.


    7. High performance motherboard, 7x24 continuous operation.
