    I5 6200U Fanless Rugged Mini Pc

    Ask Lasest Price
    Brand Name : QYT
    Model Number : EFIC-1000PA
    Certification : FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 3 working days upon receive the payment
    • Product Details
    • Company Profile

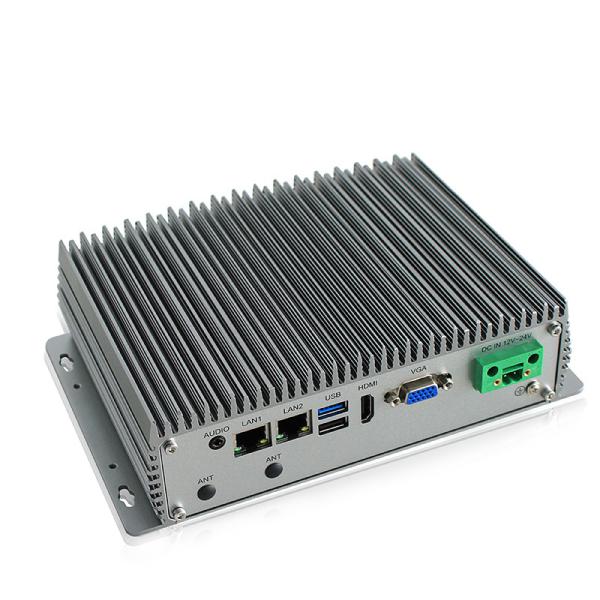

    I5 6200U Fanless Rugged Mini Pc

    Industrial Fanless Mini Pc I5 6200U Dual Core 2.5GHz MSATA DDR4 WIFI


    Feature
    1. Aluminium alloy shell
    2. Intel Core i5-6200U Dual Core 2.5GHz, Fanless Industrial Box PC
    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
    4. Operating System: Win7/8/10/Linux/Ubuntu
    5. DC12V~24V Input,(+9V~36V)wide voltage input optional


    Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.
    Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.


    Specification

    EFIC-1000PA
    SystemCPUIntel Core i5-6200U Dual Core 2.5GHz
    L2 Cache3MB
    ChipsetsIntel 6th Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 520
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI
    LAN2 x LAN
    USB4 x USB2.0 / 2 x USB3.0
    COM4 x RS232
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    InstitutionalMaterialAluminum Alloy Shell
    ColorGrey / Silver / Black ( optional )
    VESA Mounting208 x 100 mm / 208 x 60 mm
    Product Dimension220 x 145 x 62 mm
    Packing Size360 x 180 x 320 mm
    Gross Weight4.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦15W

    I5 6200U Fanless Rugged Mini Pc

    I5 6200U Fanless Rugged Mini Pc

    I5 6200U Fanless Rugged Mini Pc


    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
