    RoHS Industrial Touch Screen Display

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PM-H156WAC
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

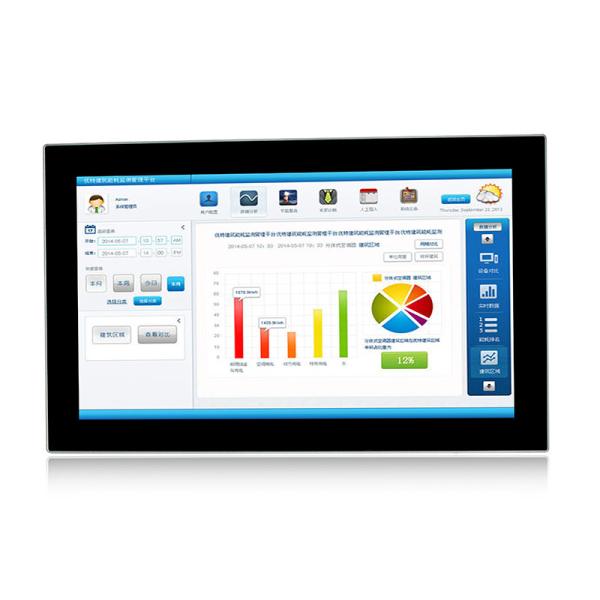

    RoHS Industrial Touch Screen Display

    Widescreen 15.6" Rugged Touch Screen Monitor 9V ~ 36V Optional Wide Viewing Angle

    Feature

    The industrial touch monitor is ideal for applications such as monitoring equipment, supervisory controller, process control systems, CNC machinery control, numerical control device and industrial automation.

    1. Aluminium alloy front panel, front IP65 waterproof
    2. 15.6" TFT LED, resolution 1920*1080, 10 points capacitive touch, industrial monitor 15.6''
    3. HD-MI/VGA/DVI multiple signals input supported
    4. Embedded / VESA mounting
    5. DC12V Input, (+9V~36V) wide voltage input optional
    6. Support wall mounting, embedded mounting, desk stand mouting etc.
    7. Accept customization
    8. -20C to +70°C Wide temperature support.
    PM-H156WAC
    LCD PanelPanel Size15.6" FHD Led
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness600 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 74% NTSC
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    I / OVGA1 x VGA
    H-DMI1 x H-DMI
    DVI1 x DVI
    USB1 x Touch USB
    Other I/O Interface1 x OSD Control Key
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension400 x 250 x 55 mm
    Cut-out Size386 x 236 mm
    Packing Size460 x 180 x 400 mm
    Gross Weight7 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)


    RoHS Industrial Touch Screen Display
    RoHS Industrial Touch Screen Display
    RoHS Industrial Touch Screen Display

    Application
    Industry 4.0
    Rail Transit
    Equipment Control Cabinet
    Industrial Equipment Control
    Cabin Driving
    Vision Detection
    CNC Control Panel


    Our Advantage
    1. Experience
    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.

    2. Wide products line
    QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.

    3. Customization functions
    Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.

    4.Widely useage environment
    QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
