    PCAP Industrial Touch Screen Monitor

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PM-H015SAC
    Certification : IP65 FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 3 working days upon receive the payment
    • Product Details
    • Company Profile

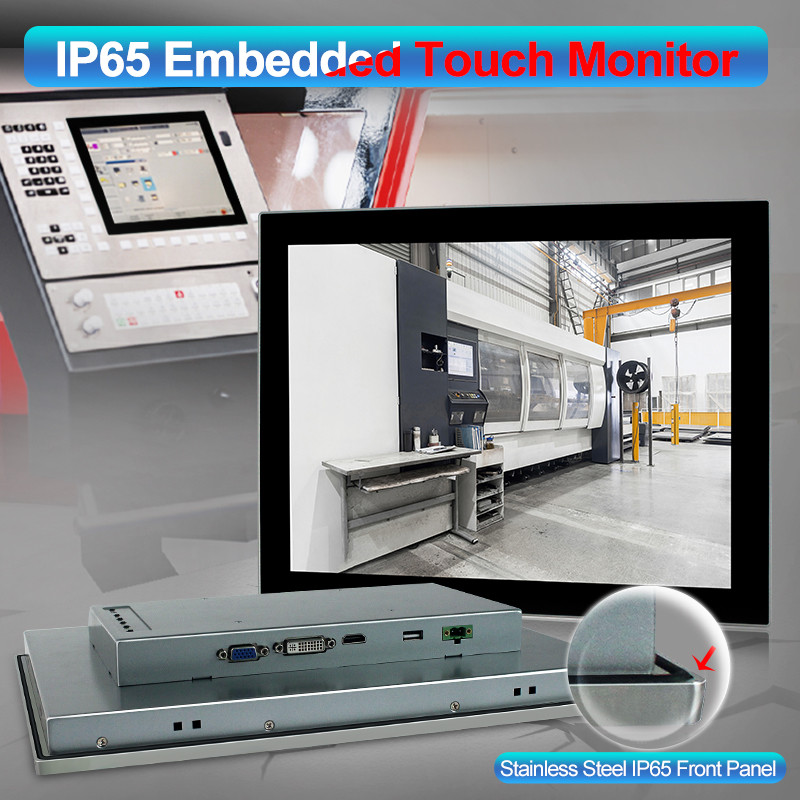

    PCAP Industrial Touch Screen Monitor

    15 inch Industrial Display Multi-Touch PCAP touch Screen VGA HD-MI USB
    Feature
    1. Aluminum alloy structure on the front panel, front panel IP65 waterproof standard
    2.15 "TFT LED, resolution 1024 x 768, capacitive touch
    3. The installation method: embedded installation/VESA installation
    4. Support HDMI/VGA/DVI a variety of signal input
    5. DC 12 v power input, optional (+ 9 v ~ 36 v) wide voltage input
    Specification
    PM-H015SAC
    LCD PanelPanel Size15" Led
    Resolution1024 x 768
    Aspect Ratio4:3
    Display Brightness350 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 74% NTSC
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    I / OVGA1 x VGA
    H-DMI1 x H-DMI
    DVI1 x DVI
    USB1 x Touch USB
    Other I/O Interface1 x OSD Control Key
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension361 x 285 x 55 mm
    Cut-out Size347 x 271 mm
    Packing Size460 x 180 x 400 mm
    Gross Weight7 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)


    PCAP Industrial Touch Screen MonitorPCAP Industrial Touch Screen Monitor
    PCAP Industrial Touch Screen Monitor
    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
