1. Stainless Steel front panel, front IP65 waterproof
2. 15" TFT LED, resolution 1024 * 768, industrial pc monitor
3. 10 points capacitive touch screen, high precision, durable,
anti-interference
4. HD-MI/VGA/DVI multiple signals input supported
5. 1000nits, 1500nits sunlight readable optional
6. DC12V Input, (+9V～36V) wide voltage input optional
| PM-H015SAC |
| LCD Panel | Panel Size | 15" Led |
| Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Display Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M , 74% NTSC |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥6H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |

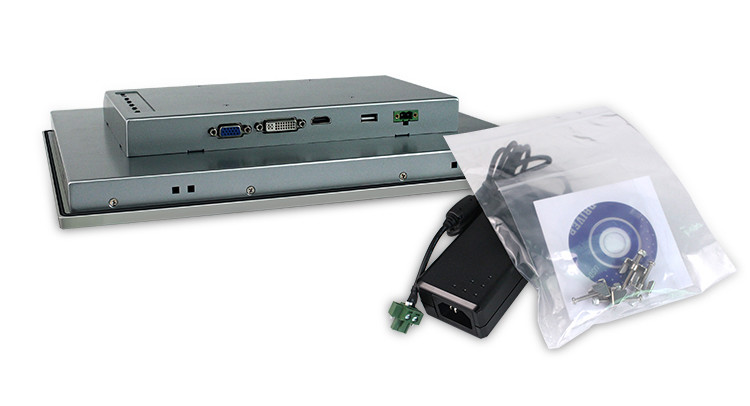

| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI |
| DVI | 1 x DVI |
| USB | 1 x Touch USB |
| Other I/O Interface | 1 x OSD Control Key |
| Institutional | Material | Stainless Steel Panel + Sheet Metal Painting Treated Back Shell |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 |
| Product Dimension | 361 x 285 x 55 mm |
| Cut-out Size | 347 x 271 mm |
| Packing Size | 460 x 180 x 400 mm |
| Gross Weight | 7 KG |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V / optional(+9V~36V) |
Features
1. 15-inch touch monitor
2. Adopt multi-touch capacitive touchscreen
3. Industrial LCD panel, wide viewing angle, true color
4. 1000nits, 1500nits brightness optional
5. Sturable rugged enclosure which is for harsh environment
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years
experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you
want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass
production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk
order.
