    DC9V-36V 2 LAN Industrial Touch Panel PC IP65 Waterproof

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J015SAC
    Certification : CE, FCC, RoHS IP65
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-7 Work Days
    • Product Details
    • Company Profile

    DC9V-36V 2 LAN Industrial Touch Panel PC IP65 Waterproof

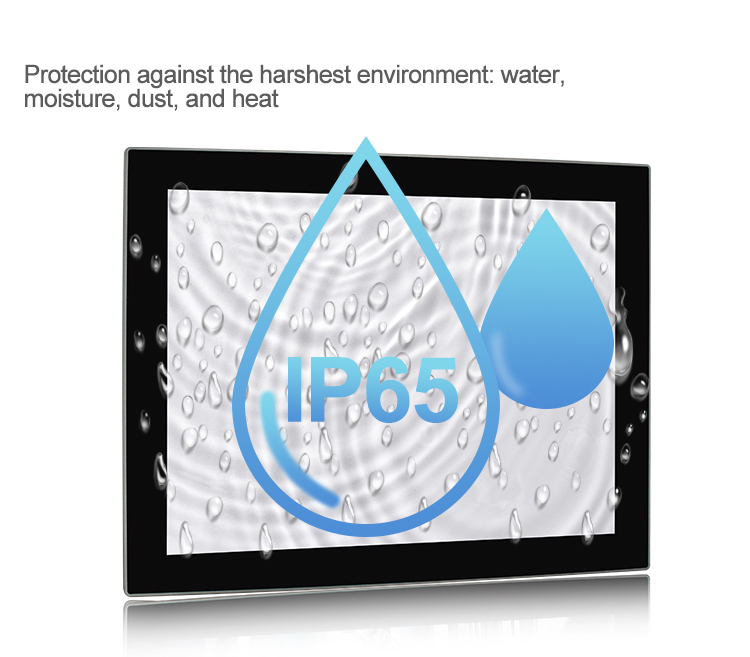

    IP65 Waterproof Industrial Touch Panel PC with DC9V~36V Input, 2 LAN


    Description:

    1. 15" TFT LED, resolution 1024 x 768, Multi-Touch PCAP


    2. Intel Celeron Quad Core J1900 2.0GHz, industrial panel pc

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC IN 9V~36V
    6. Wide range: -20°C to 70°C working temperature range.
    7. VESA Mounting: 100 x 100 mm
    8. 1000nits sunlight readable optional
    PPC-J015SAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size15" LED
    Resolution1024 x 768
    Aspect Ratio4:3
    Display Brightness350 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension361 x 285 x 60 mm
    Cut-out Size347 x 271 mm
    Packing Size460 x 180 x 400 mm
    Gross Weight7 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-30~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W


    Packing List

    1x PPC-J015SAC Series Industrial Panel PC

    1x Utility DVD Driver

    8x Embedded Buckles

    1x Power Adaptor


    Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device


    Our Advantage

    1. Experience

    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


    2. Wide products line

    7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.


    3. Customization functions

    It offers rich of interface to meet csutomers needs.


    4.Widely useage environment

    QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
