    IP67 21.5 Inch Fanless Panel Pc Touch Screen LAN USB RS232 PCAP

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-J215WAC
    Certification : IP66 IP69K CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 12 working days upon receive the payment
    • Product Details
    • Company Profile

    IP67 21.5 Inch Fanless Panel Pc Touch Screen LAN USB RS232 PCAP

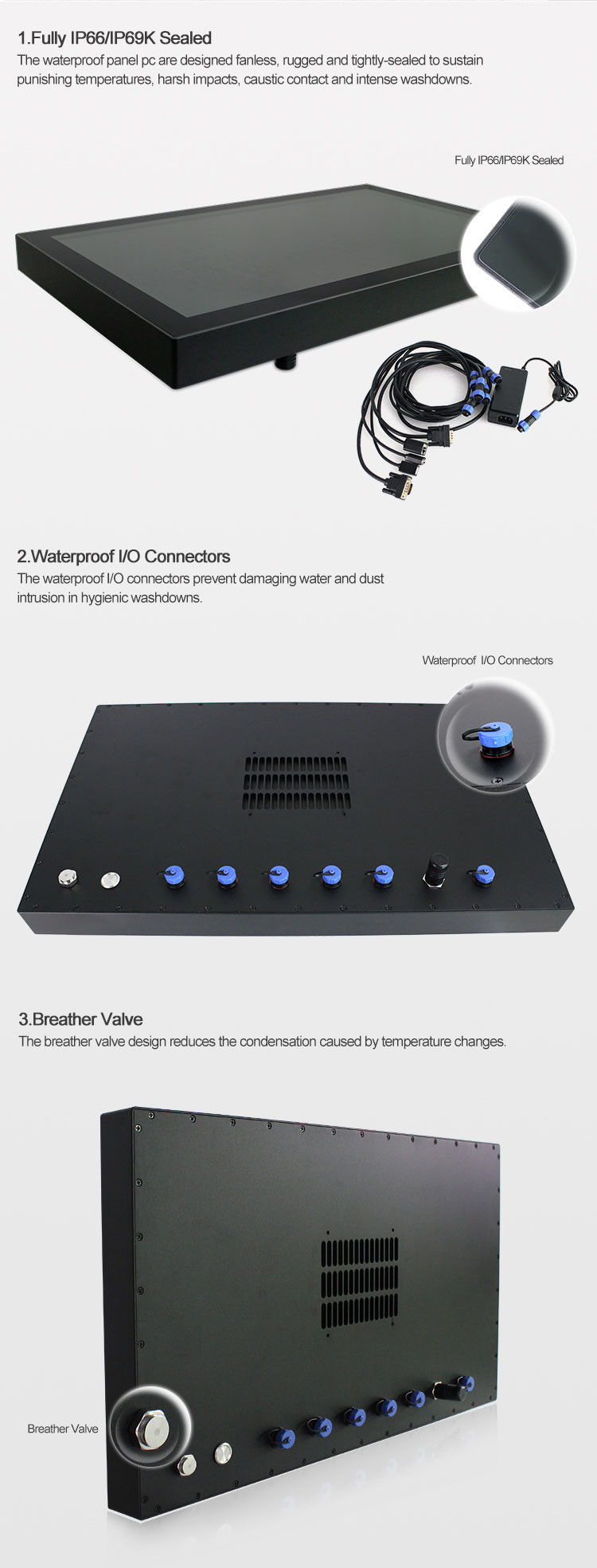

    21.5 Inch Washdown Fanless IP67 IP68 IP69K Panel PC LAN USB RS232 PCAP


    Feature
    1.21.5" TFT LED, resolution 1920*1080, capacitive touch

    2. Intel Bay trail j1900 CPU: 2.0GHz, Industrial Panel PC - 21.5 inch outdoor touch screen

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage input optional


    Specification

    WPC-J215WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics
    NetworkIntel 82583V 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB3 x USB2.0 / 1 x USB3.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size21.5" Led
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness250 cd/m2
    Contrast Ratio3000:1
    Colors16.7M , 74% NTSC
    Response Time13/5 (Typ.)(Tr/Td) ms
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type10 point capacitive touch
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66 / IP69K

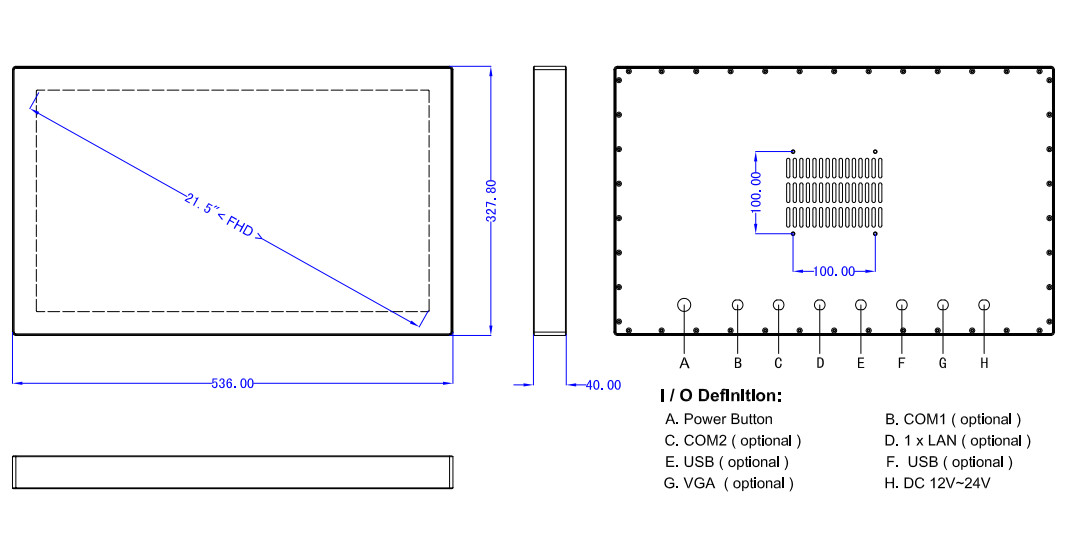

    Product Dimension536 x 328 x 40 mm
    Cut-out Size/
    Packing Size630 x 190 x 480 mm
    Gross Weight12.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W

    IP67 21.5 Inch Fanless Panel Pc Touch Screen LAN USB RS232 PCAP

    IP67 21.5 Inch Fanless Panel Pc Touch Screen LAN USB RS232 PCAP

    Application

    manufacturing

    industrial automation

    medical, semiconductor

    food processing

    machine control


    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
