    OEM 5 Wire Resistive IP67 Panel PC Industrial Use All In One Computer

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-M010SAR
    Certification : CE, RoHS, FCC, IP67, IP69K
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    OEM 5 Wire Resistive IP67 Panel PC Industrial Use All In One Computer

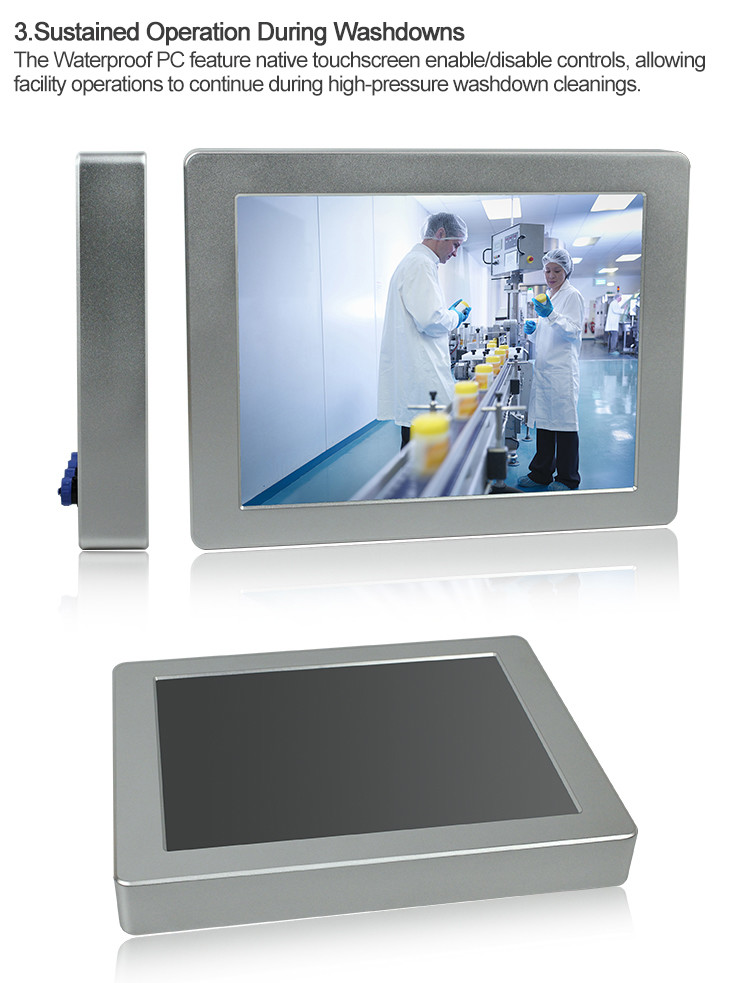

    OEM full waterproof resistive touch ip67 panel pc for industrial application

    Features

    1. 10.4" LED, resolution 800 * 600, 4 wire resistive touch


    2. Intel Celeron Dual Core 3855U 1.6GHz

    3. Multi ports optional: VGA/HD-MI/LAN/USB/RS232

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage optional
    6. VESA Mounting: VESA: 75 x 75 mm
    Specification
    WPC-M010SAR
    SystemCPUIntel Celeron Dual Core 3855U 1.6GHz
    L2 Cache2MB
    ChipsetsIntel Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 510
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB4 x USB ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size10.4" Led
    Resolution800 x 600
    Aspect Ratio4:3
    Display Brightness400 cd/m2
    Contrast Ratio500:1
    Colors262K/16.2M , 40% NTSC
    Response Time10/15 (Typ.)(Tr/Td) ms
    Viewing Angle70 / 70 / 60 / 70 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type4 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 75 x 75 mm
    Waterproof RateIP67 / IP68 / IP69K
    Product Dimension265 x 210 x 42 mm
    Cut-out Size/
    Packing Size450 x 170 x 350 mm
    Gross Weight5.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W

    OEM 5 Wire Resistive IP67 Panel PC Industrial Use All In One ComputerOEM 5 Wire Resistive IP67 Panel PC Industrial Use All In One ComputerOEM 5 Wire Resistive IP67 Panel PC Industrial Use All In One Computer

    Applications

    It is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
