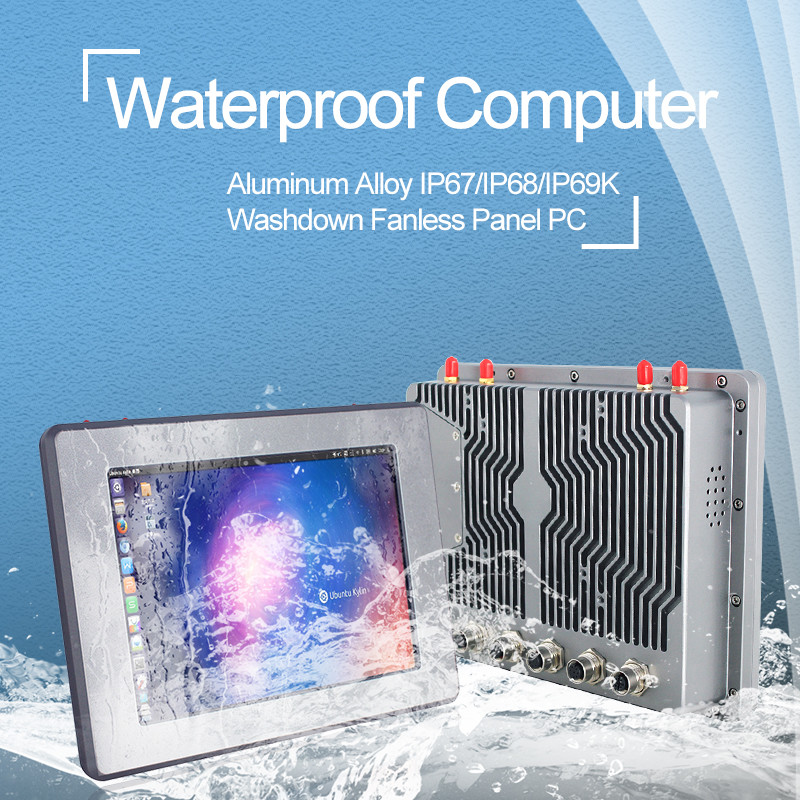

8.4" Ip67 Panel Pc Outdoor Water Resistant Rate Resolution 800 X
600 J1900 12V
Features
1.8.4" TFT LED, resolution 800 x 600
2. 5 wire resistive touch screen, high precision, durable,
anti-interference.
3. Intel Bay trail j1900 CPU: 2.0GHz
4. Multi ports for option: VGA/HD-MI/LAN/USB/COM
5. Operating System: Win7/8/10/Linux/Ubuntu
6. DC12V~24V Input,(+9V～36V)wide voltage input optional
7. CE, FCC, RoHS, IP69K Compliance
8. Fully sealed and fanless design, full IP67/IP69K waterproof,
Sealed I/O with cable set included.
| WPC-J008SBR |
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics |
| Network | Intel 82583V 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) |
| USB | 3 x USB2.0 / 1 x USB3.0 ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | Panel Size | 8.4" Led |
| Resolution | 800 x 600 |
| Aspect Ratio | 4:3 |
| Display Brightness | 450 cd/m2 |
| Contrast Ratio | 600:1 |
| Colors | 262K/16.2M |
| Response Time | 20/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% |
| Response Time | <5ms |
| Surface Hardness | ≥3H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 1000W |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP67 / IP69K |

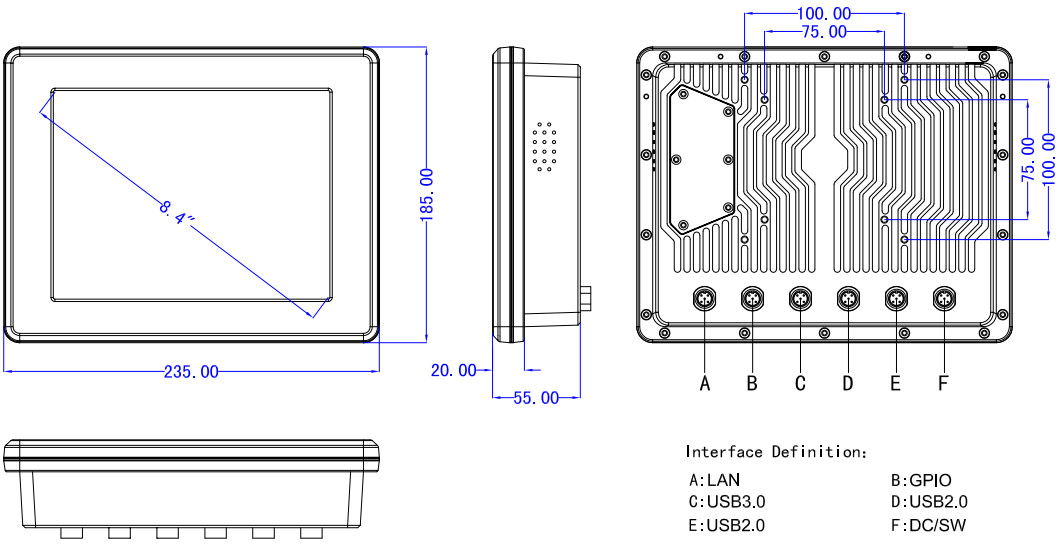

| Product Dimension | 235 x 185 x 55 mm |
| Cut-out Size | / |
| Packing Size | 360 x 180 x 320 mm |
| Gross Weight | 5.0 KG |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦30W |
Packing List
WPC-J008SBR Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial
Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable
waterproof computer (WPC), highly integrated control HMI (DCP) and
embedded fanless industrial panel computer (PPC), embedded
industrial computer ( IPC) and embedded fanless industrial
computers (EFIC). The product range constantly launches mainstream
cost-effective products according to the market demand. Currently
there are more than 200 models and other options to serve the
market demand.
3. Customization functions
Relying on professional technical capabilities and R&D
advantages, QYT creates the most competitive OEM/ODM products
according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data
acquisition, process control, motion control, automated testing,
visual inspection, communication gateways and other application
fields, as well as rail transit, intelligent transportation,
petrochemical, electricity, new energy, medical equipment,
environmental monitoring, financial self-service and other
industries.
