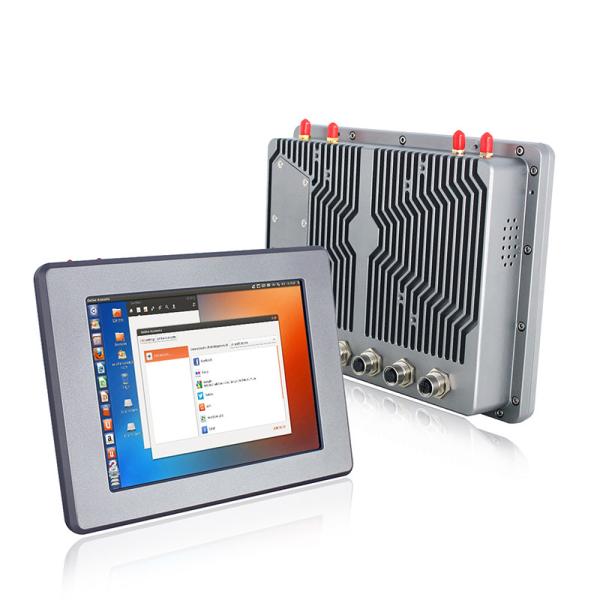

OEM vehicle mount touch screen waterproof industrial pc with 9-36v
wide voltage
Features
This is a Aluminum Alloy IP67 waterproof PC, fanless, strong and
tightly-sealed to sustain punishing temperatures, harsh impacts and
intense equipment washdowns.
1. 8.4" TFT LED with resistive touch
2. Intel Celeron Dual Core 3855U 1.6GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 16GB
4. M12 I/O Connectors optional:HDMI/LAN/USB/COM
5. Full System IP67/IP69K Level Dustproof & Waterproof
6. DC12V~24V Input (+9V～36V wide voltage optional)
7. -20°C ~ 70°C extended operating temperature
| WPC-M008SBR |
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 510 |
| Network | Intel® i211 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | Panel Size | 8.4" Led |
| Resolution | 800 x 600 |
| Aspect Ratio | 4:3 |
| Display Brightness | 450 cd/m2 |
| Contrast Ratio | 600:1 |
| Colors | 262K/16.2M |
| Response Time | 20/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% |
| Response Time | <5ms |
| Surface Hardness | ≥3H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 1000W |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP67 / IP69K |
| Product Dimension | 235 x 185 x 55 mm |
| Cut-out Size | / |
| Packing Size | 360 x 180 x 320 mm |
| Gross Weight | 5.0 KG |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦30W |
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption
board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Applications
The waterproof computers are a great solution for food and beverage
processing, agriculture and automation control where the computers
are in constant threat of water splash from all directions to even
water immersion.
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial
Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded
computer, lcd monitor, waterproof computer, sunlight readable
pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry,
boat...etc
