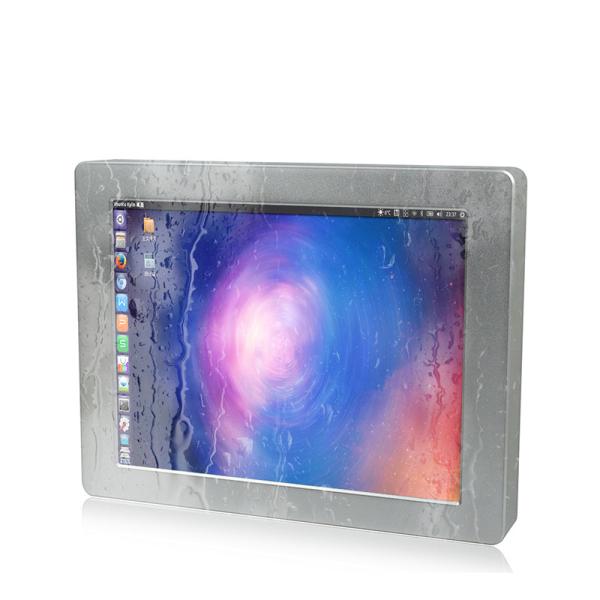

    12 Inch Ip68 Resistive Waterproof Touch Screen PC High Brightness

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-J012SAR
    Certification : CE, FCC, RoHS, IP67, IP69K
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-5 Working Days
    • Product Details
    • Company Profile

    12 Inch Ip68 Resistive Waterproof Touch Screen PC High Brightness

    12 inch ip68 resistive touch screen waterproof pc high brightness wide voltage

    Feature

    The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.


    1. 12" TFT LED, resolution 800 * 600, 5 wire resistive touch


    2. Intel Bay trail j1900 CPU: 2.0GHz, full ip68 waterproof industrial pc

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage input optional
    6. 1000nits sunlight readable optional
    WPC-J012SAR
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics
    NetworkIntel 82583V 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB4 x USB ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size12" Led
    Resolution800 x 600
    Aspect Ratio4:3
    Display Brightness400 cd/m2
    Contrast Ratio800:1
    Colors262K/16.7M , 55% NTSC
    Response Time30 (Typ.)(Tr+Td) ms
    Viewing Angle80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP67 / IP68 / IP69K
    Product Dimension310 x 241 x 42 mm
    Cut-out Size/
    Packing Size450 x 170 x 350 mm
    Gross Weight5.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W

    12 Inch Ip68 Resistive Waterproof Touch Screen PC High Brightness

    12 Inch Ip68 Resistive Waterproof Touch Screen PC High Brightness12 Inch Ip68 Resistive Waterproof Touch Screen PC High Brightness


    OEM/ODM

    1. size from 7''-21.5'' available

    2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board

    3. Capacitive touch / Resistive touch or without touch

    4. 1000nits, 1500nits high brightness for sunlight readable

    5. DC 9V~36V wide voltage input


    Waterproof Panel PC Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device
