    Wall Mount VESA 19 Inch IP67 Panel PC Industrial Touch Fanless Outdoor Use

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-J019SAC
    Certification : CE, FCC, RoHS, IP66, IP69K
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

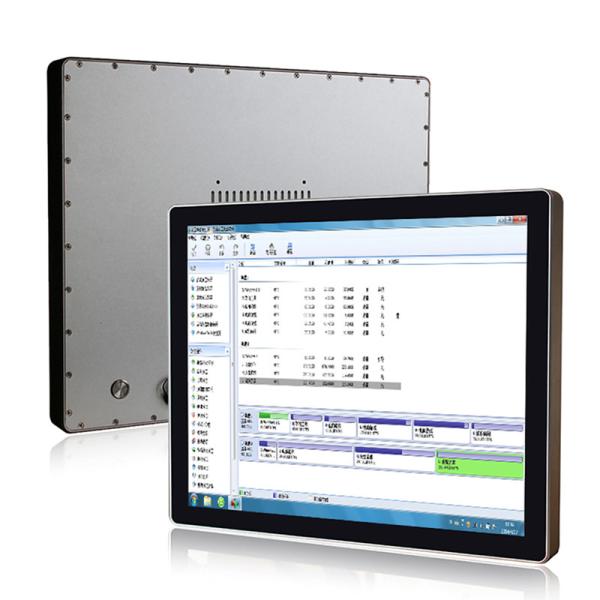

    Wall Mount VESA 19 Inch IP67 Panel PC Industrial Touch Fanless Outdoor Use

    19" Industrial Touch Panel Pc IP67 Waterproof Outdoor Fanless Wall Mount VESA

    Feature
    The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.

    1. 19" TFT LED, resolution 1280 x 1024

    2. 10 points capacitive touch screen, high precision, durable, anti-interference.


    3. Intel Bay trail j1900 CPU: 2.0GHz, industrial panel pc ip66

    4. Multi I/O Interface optional: VGA/HD-MI/LAN/USB/RS232

    5. OS: Win7/8/10/Linux/Ubuntu

    6. DC12V~24V Input,(+9V~36V)wide voltage input optional
    7. Fully sealed and fanless design, full IP69k waterproof, Sealed I/O with cable set included.
    WPC-J019SAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics
    NetworkIntel 82583V 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB3 x USB2.0 / 1 x USB3.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size19" Led
    Resolution1280 x 1024
    Aspect Ratio4:3
    Display Brightness450 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 90% NTSC
    Response Time7/3 (Typ.)(Tr/Td) ms
    Viewing Angle85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type10 point capacitive touch
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66 / IP69K
    Product Dimension427 x 352 x 40 mm
    Cut-out Size/
    Packing Size500 x 180 x 450 mm
    Gross Weight8.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W

    Wall Mount VESA 19 Inch IP67 Panel PC Industrial Touch Fanless Outdoor Use
    Wall Mount VESA 19 Inch IP67 Panel PC Industrial Touch Fanless Outdoor UseWall Mount VESA 19 Inch IP67 Panel PC Industrial Touch Fanless Outdoor Use
    Packing List
    WPC-J019SAC Waterproof Panel PC

    Waterproof VGA/RS232/LAN/USB/COM cables

    1x Utility DVD Driver

    1x Power Adaptor

    Applications

    Industrial automation

    human Machine Interface

    Marine control system

    welding industry

    supervisory control

    numerical control device


    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
