Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle

    Buy cheap Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle from wholesalers

    Buy cheap Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle from wholesalers
    • Buy cheap Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle from wholesalers
    • Buy cheap Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle from wholesalers
    • Buy cheap Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle from wholesalers

    Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-J008SBR
    Certification : CE, FCC, RoHS, IP66, IP69K
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Working Days
    • Product Details
    • Company Profile

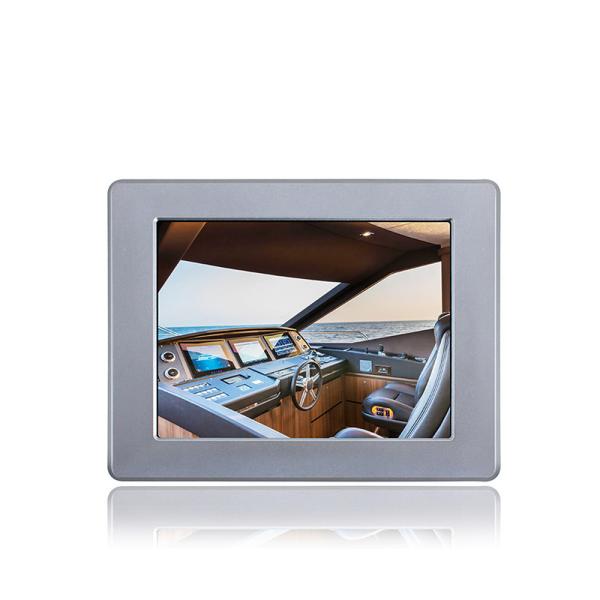

    Customized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle

    Customized 8.4" 5 wire resistive touchscreen outdoor waterproof panel pc ip67 for vehicle


    Features
    The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.

    1.8.4" TFT LED, resolution 800 x 600

    2. 5 wire resistive touch screen, high precision, durable, anti-interference.


    3. Intel Bay trail j1900 CPU: 2.0GHz, vehicle mounted computer

    4. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    5. Operating System: Win7/8/10/Linux/Ubuntu

    6. DC12V~24V Input,(+9V~36V)wide voltage input optional
    7. CE, FCC, RoHS, IP69K Compliance
    8. Fully sealed and fanless design, full IP67/IP69K waterproof, Sealed I/O with cable set included.
    WPC-J008SBR
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics
    NetworkIntel 82583V 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB3 x USB2.0 / 1 x USB3.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size8.4" Led
    Resolution800 x 600
    Aspect Ratio4:3
    Display Brightness450 cd/m2
    Contrast Ratio600:1
    Colors262K/16.2M
    Response Time20/10 (Typ.)(Tr/Td) ms
    Viewing Angle80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP67 / IP69K
    Product Dimension235 x 185 x 55 mm
    Cut-out Size/
    Packing Size360 x 180 x 320 mm
    Gross Weight5.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W


    Customized 8.4" 5 Wire Resistive Touch Screen Pc For VehicleCustomized 8.4" 5 Wire Resistive Touch Screen Pc For VehicleCustomized 8.4" 5 Wire Resistive Touch Screen Pc For Vehicle

    Packing List

    WPC-J008SBR Waterproof Panel PC


    Waterproof VGA/RS232/LAN/USB/COM cables


    1x Utility DVD Driver


    1x Power Adaptor


    Applications

    Industrial automation

    human Machine Interface

    Marine control system

    welding industry

    supervisory control

    numerical control device

    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
