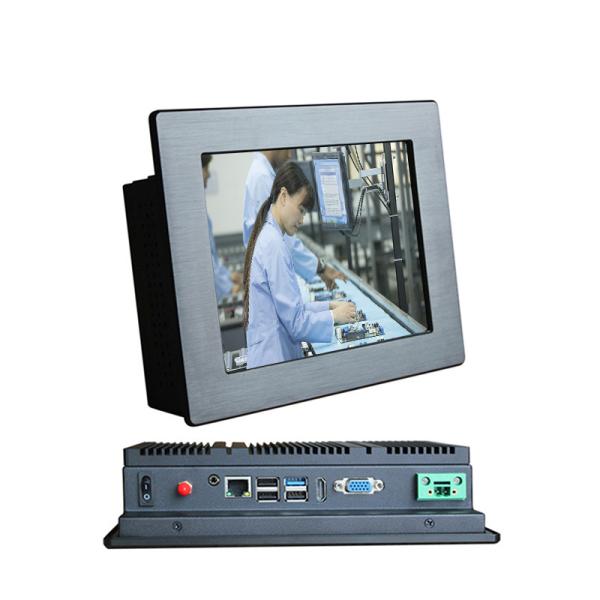

    I5-6200U DC 12V-19V Industrial Touch Screen Computer For Vehicle Resistive Touch

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-P008SAR
    Certification : IP65 FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    I5-6200U DC 12V-19V Industrial Touch Screen Computer For Vehicle Resistive Touch

    Industrial Panel Pc I5-6200U DC 12V~19V For Vehicle Resistive Touch


    Feature

    1. 8.4" TFT LED, resolution 800 x 600, resistive touch


    2. Intel Core Dual Core i5-6200U 2.5GHz, mini pc wifi

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage input optional

    Specification

    PPC-P008SAR
    SystemCPUIntel Core i5-6200U Dual Core 2.5GHz
    L2 Cache3MB
    ChipsetsIntel 6th Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 520
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA
    Digital signal1 x HD-MI
    USB2 x USB2.0 / 2 x USB3.0
    LAN1 x LAN
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size8.4" Led
    Resolution800 x 600
    Aspect Ratio4:3
    Display Brightness450 cd/m2
    Contrast Ratio600:1
    Colors262K/16.2M , 40% NTSC
    Response Time20/10 (Typ.)(Tr/Td) ms
    Viewing Angle80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Panel + Sheet Metal Back Cover, Baking Varnish Treated
    ColorSilver / Black ( optional )
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension235 x 185 x 55 mm
    Cut-out Size221 x 171 mm
    Packing Size360 x 180 x 320 mm
    Gross Weight4.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~19V / optional(+9V~36V)
    Power Consumption≦30W

    I5-6200U DC 12V-19V Industrial Touch Screen Computer For Vehicle Resistive TouchI5-6200U DC 12V-19V Industrial Touch Screen Computer For Vehicle Resistive TouchI5-6200U DC 12V-19V Industrial Touch Screen Computer For Vehicle Resistive Touch

    Industrial fully enclosed industrial computer, aluminum alloy shell, fully enclosed design, metal grid heat dissipation, strong configuration, rich interface design, all-weather operation, multiple USB interfaces, synchronous / asynchronous dual display, WiFi / Bluetooth support. It is widely used in industry and all aspects of people's life.

    1. Rich interface, everything: perfect interface design, whether it is high-definition HDMI, or professional serial port, everything.
    2. Core can be strong, with speed around life: equipped with Intel strong core processor, innovation speed, efficient operation.
    3. No fan mute, all aluminum heat dissipation: all aluminum shell, efficient heat dissipation scheme, shockproof, anti falling, no fan mute.
    4. Industrial dustproof, high and low temperature resistance: support - 10 ℃ to 60 ℃ wide temperature, especially suitable for industrial use.
    5. 7 * 24 hours of stable operation throughout the year: 24 hours of operation throughout the year, no stuck, no crash.
    6. Easy to deal with harsh environment: Farewell to industrial dust, high temperature, shaking trouble, strong adaptability.
    7. Support a variety of operating systems: support win7, win10, XP system.
    8. Application fields: industrial places, financial institutions, monitoring systems, medical equipment.
    9. Installation method: it has its own installation bracket, supports wall mounted, rack mounted, desktop, embedded and other installation methods, and can be flexibly fixed on the desktop, wall, etc. Save space, simple and fast installation.


    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
