    Hmi Vesa Industrial Panel Mount Pc , Ip69k Touch Touch Panel Computer

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-M015SAR
    Certification : CE, FCC, RoHS, IP68, IP69K
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Hmi Vesa Industrial Panel Mount Pc , Ip69k Touch Touch Panel Computer

    High brightness hmi vesa ip69k touch panel pc for industrial automation

    Feature

    This is a Aluminum Alloy IP68 waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.


    1. 15" TFT LED, resolution 1024*768, resistive touch


    2. Intel Celeron Dual Core 3855U 1.6GHz, Waterproof Panel PC

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage input optional
    WPC-M015SAR
    SystemCPUIntel Celeron Dual Core 3855U 1.6GHz
    L2 Cache2MB
    ChipsetsIntel Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 510
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN1 x LAN ( Optional )
    USB2 x USB2.0 / 2 x USB3.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size15" Led
    Resolution1024 x 768
    Aspect Ratio4:3
    Display Brightness350 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 72% NTSC
    Response Time30 (Typ.)(Tr+Td) ms
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )

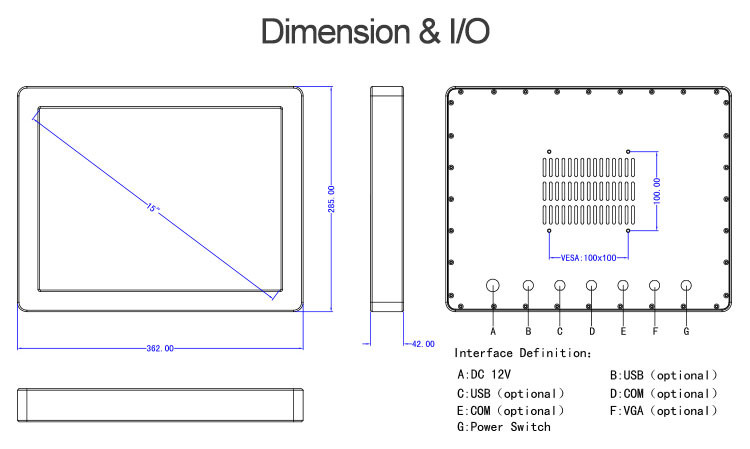

    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP67 / IP68 / IP69K
    Product Dimension362 x 285 x 42 mm
    Cut-out Size/
    Packing Size460 x 180 x 400 mm
    Gross Weight7.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W



    Hmi Vesa Industrial Panel Mount Pc , Ip69k Touch Touch Panel ComputerHmi Vesa Industrial Panel Mount Pc , Ip69k Touch Touch Panel Computer

    Applications

    The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.


    FAQ

    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.

    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.

    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.

    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
