    Oem 1280 X 1024 Medical Panel PC Touch Screen 17" TFT LED

    Ask Lasest Price
    Brand Name : QYT
    Model Number : DCP-J017SBR
    Certification : IP65 FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 12 working days upon receive the payment
    • Product Details
    • Company Profile

    Oem 1280 X 1024 Medical Panel PC Touch Screen 17" TFT LED

    17" Device Control Medical Panel PC Aluminum Oem Stop / Start Switch


    Feature
    1. 17" TFT LED, resolution 1280 x 1024, resistive touch

    2. Intel Bay trail j1900 CPU: 2.0GHz, 17" Industrial Operation

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC12V~24V Input,(+9V~36V)wide voltage input optional


    Specification

    DCP-J017SBR
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics
    NetworkIntel 82583V 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI
    LAN1 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    IDEC SwitchStart / Select / Reset / Key/ Stop switch ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size17" Led
    Resolution1280 x 1024
    Aspect Ratio5:4
    Display Brightness400 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 90% NTSC
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingCantilever bracket
    Waterproof RateIP65

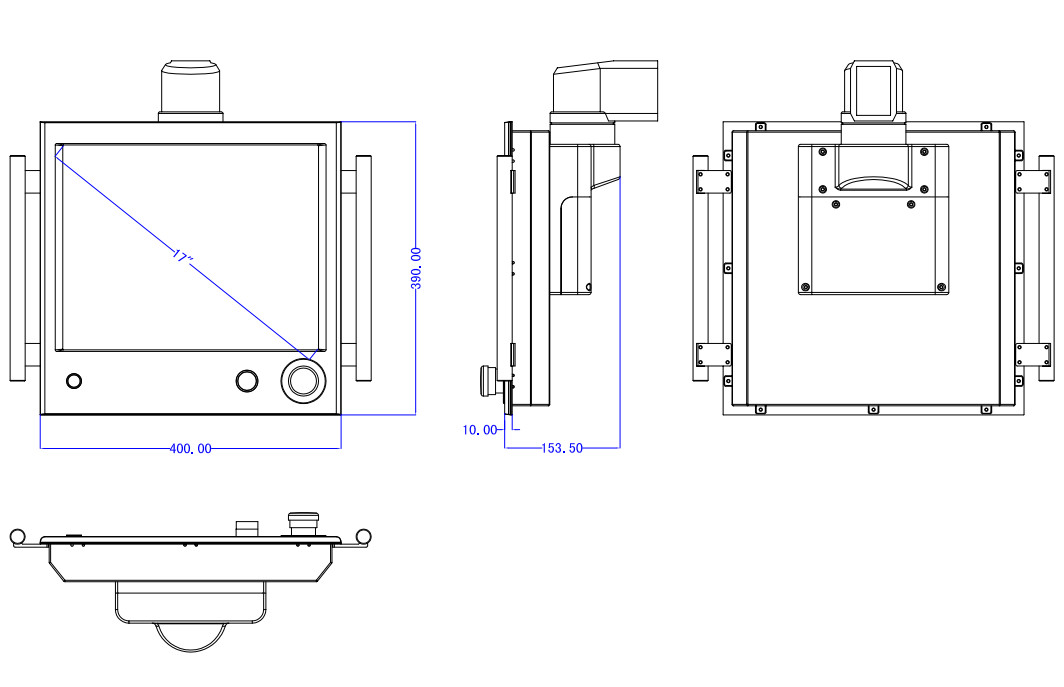

    Product Dimension400 x 390 x 155 mm
    Cut-out Size/
    Packing Size500 x 340 x 450 mm
    Gross Weight16.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W

    Oem 1280 X 1024 Medical Panel PC Touch Screen 17" TFT LED

    Oem 1280 X 1024 Medical Panel PC Touch Screen 17" TFT LED

    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
