Stainless Steel 304 IP69K Panel PC

    Buy cheap Stainless Steel 304 IP69K Panel PC from wholesalers

    Buy cheap Stainless Steel 304 IP69K Panel PC from wholesalers
    • Buy cheap Stainless Steel 304 IP69K Panel PC from wholesalers

    Stainless Steel 304 IP69K Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : WPC-J015SCC
    Certification : IP66 IP69K FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 7working days upon receive the payment
    • Product Details
    • Company Profile

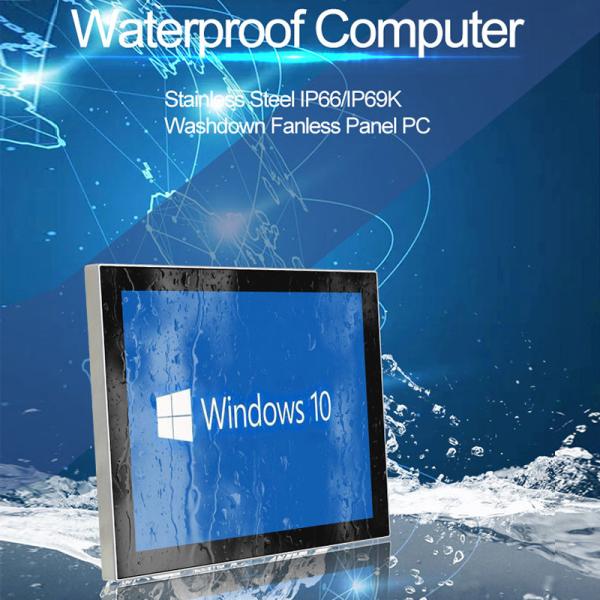

    Stainless Steel 304 IP69K Panel PC

    Anti-Rust 15" Outdoor Waterproof Industrial Panel Pc Stainless Steel 304


    Feature


    The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.


    1.15" TFT LED, resolution 1024*768, capacitive touch
    2. Intel Bay trail j1900 CPU: 2.0GHz
    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
    4. Operating System: Win7/8/10/Linux/Ubuntu
    5. DC12V~24V Input,(+9V~36V)wide voltage input optional


    Specification

    WPC-J015SCC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics
    NetworkIntel 82583V 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI ( Optional )
    LAN2 x LAN ( Optional )
    USB3 x USB2.0 / 1 x USB3.0 ( Optional )
    COM2 x RS232 ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size15" Led
    Resolution1024 x 768
    Aspect Ratio4:3
    Display Brightness350 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 72% NTSC
    Response Time30 (Typ.)(Tr+Td) ms
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type10 point capacitive touch
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥6H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialStainless Steel SUS04
    ColorPolished brushed surface
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP66 / IP69K
    Product Dimension360 x 284 x 55 mm
    Cut-out Size/
    Packing Size460 x 180 x 400 mm
    Gross Weight9.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption

    ≦30W


    Stainless Steel 304 IP69K Panel PC

    Stainless Steel 304 IP69K Panel PC

    Application

    manufacturing

    industrial automation

    medical, semiconductor

    food processing

    machine control


    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
