    Quad Core Medical Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J017SAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    Quad Core Medical Panel PC

    17" Customized 4GB RAM Desktop J1900 Quad Core Medical Panel Pc With 2*COM

    Feature

    PPC-J017SAC is a cost-effective industrial grade Panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.


    This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.


    1. Aluminium alloy front panel, front IP65 waterproof

    2. 17" TFT LED, resolution 1280*1024, 10 points capacitive touch

    3. Intel j1900 CPU:2.0GHz silent fanless industrial panel PC

    4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection

    5. Built-in TPM2.0 for Hardware-based Security

    6. DC 9~36V, overcurrent, overvoltage & reverse connection protection

    PPC-J017SAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Ubuntu, Debian

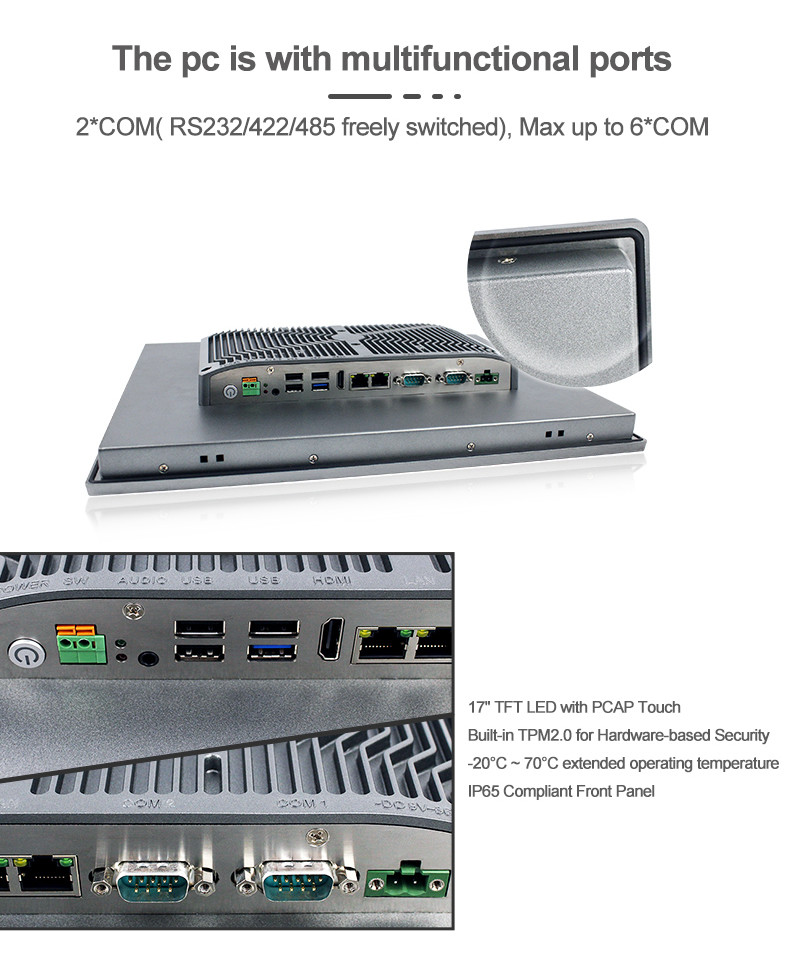

    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size17" LED
    Resolution1280 x 1024
    Aspect Ratio5:4
    Display Brightness400 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension395 x 327 x 60 mm
    Cut-out Size381 x 313 mm
    Packing Size500 x 180 x 450 mm
    Gross Weight8 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W

    Quad Core Medical Panel PCQuad Core Medical Panel PCQuad Core Medical Panel PC


    Advantage

    1. QYT industrial grade panel PC offer different installation style, such as desktop, embedded, wall-mounted and rack-mounted, cantilever.


    2. Color: black or gray, offer appearance color customization service.


    3. Industrial all-in-one PCs meet IP65 waterproof and dust-proof standard.


    4. Working temperature is -20~70 °C, humidity range is 5%~95%.


    5. Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.


    6. Aluminium alloy shell, high performance for heat-dissipation.


    7. Support non-touch, resistive touch and capacity touch screen.


    8. The panel PC provide standard I/O interface: VGA, HD-MI, LAN, USB, COM, also support other customized multi-ports.


    9. Anti-interference design to meet EMI / EMC standards.


    10. 8KV Static Electricity & 600W TVS Surge Protection


    11. Offer multitude ports for customers according to different application. Support expansion.


    FAQ

    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.

    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.

    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.

    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
