RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer

    Buy cheap RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer from wholesalers

    Buy cheap RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer from wholesalers
    • Buy cheap RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer from wholesalers
    • Buy cheap RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer from wholesalers

    RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer

    Ask Lasest Price
    Brand Name : QYT
    Model Number : DCP-O017SAR
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer

    17 Inch RS485/RS232 I3 Resistive Touch Screen Hmi Industrial Control Pc With Customized Buttons

    Feature
    HMI Touch Panel for use in harsh industrial environments
    The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
    If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.


    1. 17" TFT LED, resolution 1280 x 1024

    2. 5 wire resistive touch screen

    3. Intel Core i3-6100U Dual Core 2.4GHz

    4. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    5. Operating System: Win7/8/10/Linux/Ubuntu

    6. DC12V~24V Input,(+9V~36V)wide voltage input optional
    DCP-O017SAR
    SystemCPUIntel Core i3-6100U Dual Core 2.4GHz
    L3 Cache3MB
    ChipsetsIntel 6th Skylake-U SOC
    MemoryDDR4L 2133MHz 4GB, Up to 16GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
    GraphicsIntel HD Graphics 520
    NetworkIntel® i211 1000 Mbps port
    AudioRealtek ACL662 Audio controller
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OVGA1 x VGA / 1 x HD-MI
    LAN1 x LAN
    USB2 x USB2.0 / 2 x USB3.0

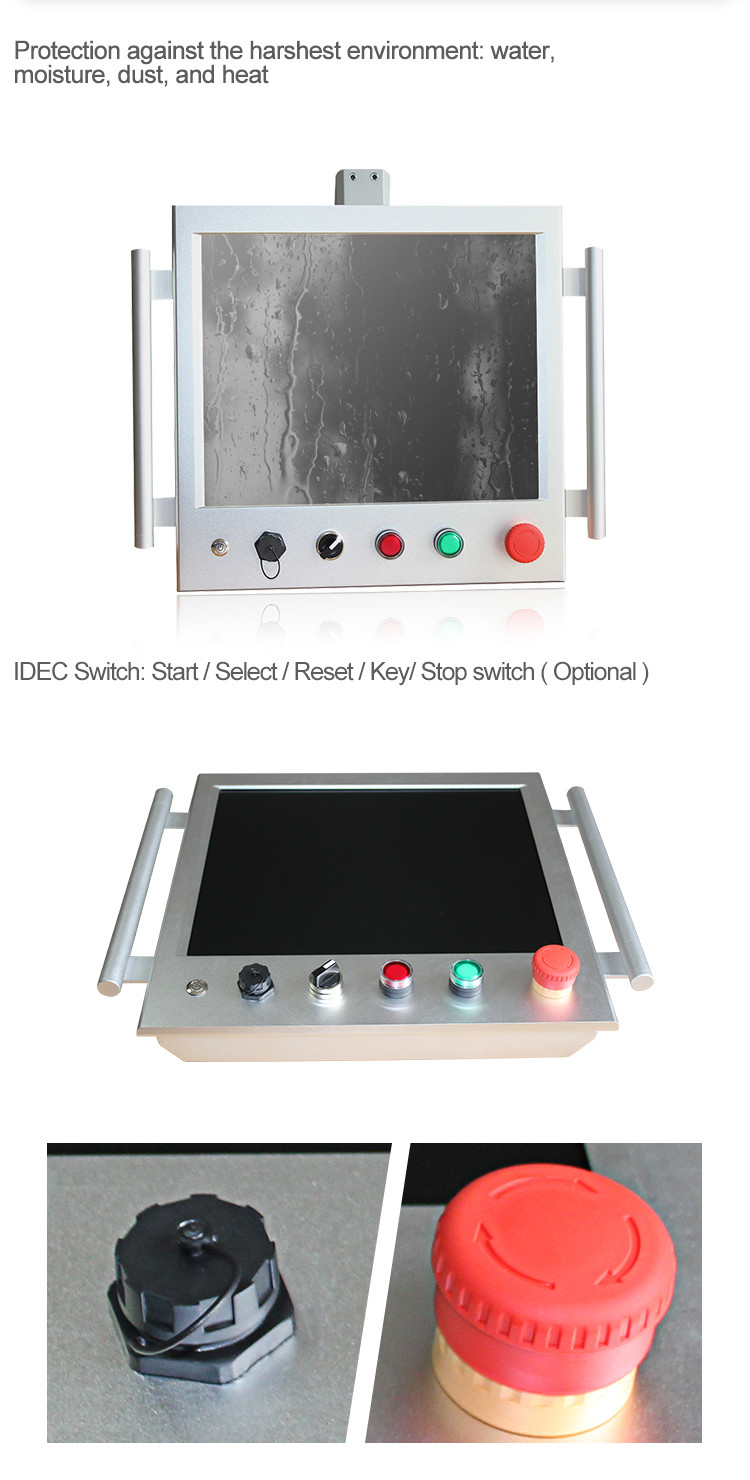

    IDEC SwitchStart / Select / Reset / Key/ Stop switch ( Optional )
    Wireless NetworkWiFi + Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size17" Led
    Resolution1280 x 1024
    Aspect Ratio5:4
    Display Brightness400 cd/m2
    Contrast Ratio1000:1
    Colors16.7M , 90% NTSC
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen Type5 wire resistive touch
    Transmittance>85%
    Response Time<5ms
    Surface Hardness≥3H
    Supply Voltage5.0V DC
    Touch Life≧ 1000W
    InstitutionalMaterialAluminum Alloy Shell
    ColorSilver / Black ( optional )
    VESA MountingCantilever bracket
    Waterproof RateIP65
    Product Dimension400 x 390 x 155 mm
    Cut-out Size/
    Packing Size500 x 340 x 450 mm
    Gross Weight16.0 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V~24V / optional(+9V~36V)
    Power Consumption≦30W


    RS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel ComputerRS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel ComputerRS485 RS232 I3 Resistive Marine Panel Pc , Hmi Flat Panel Computer


    Secure protection for Automation Touch Panel

    As standard, our Automation Panels are equipped with IP65 protection on the front and rear and prevent the ingress of dirt or moisture. This makes the panels ideally suited for use in harsh industrial environments and withstands even the toughest environmental conditions.


    Configuration of the button assignment

    The use of a push-button strip increases the possibilities for machine operation functionality even further. With the exception of the emergency stop, the push-buttons can be individually assigned according to your requirements. You define which colour the buttons should have and which labelling is to be applied. An RFID reader and a protected USB socket are available on the left side. On request, we can integrate your company logo into the button strip.


    Our Advantage

    1. Experience

    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


    2. Wide products line

    7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.


    3. Customization functions

    It offers rich of interface to meet csutomers needs.


    4.Widely useage environment

    QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
