    15.6 Inch Industrial Touch Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-J156WAC
    Certification : IP65 FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    15.6 Inch Industrial Touch Panel PC

    Aluminum Alloy Embedded Touch Panel PC 15.6 Inch Wide Screen Computers Applied

    Feature

    1. 15.6" TFT LED, resolution 1920 x 1080, Multi-Touch PCAP

    2. Intel Celeron Quad Core J1900 2.0GHz, industrial computer best manufacturers in china

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Win7/8/10/Linux/Ubuntu

    5. DC IN 9V~36V

    Application

    Application

    manufacturing

    industrial automation

    medical, semiconductor

    food processing

    machine control


    Specification

    PPC-J156WAC
    SystemCPUIntel Celeron Quad Core J1900 2.0GHz
    L2 Cache2MB
    ChipsetsIntel Bay Trail SOC
    MemoryDDR3L 1333MHz 4GB, Up to 8GB
    Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) optional
    GraphicsIntel HD Graphics
    NetworkIntel® I211-AT GbE LAN
    AudioRealtek ACL662 Audio controller
    TPMTPM 2.0
    Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
    I / OHDMI1 x H-DMI
    LAN2 x LAN
    USB3 x USB2.0 / 1 x USB3.0
    COM2 x RS-232 / 422 / 485
    Wireless Network4G / WiFi / Bluetooth ( Optional )
    Other I/O Interface1 x Power Switch
    LCD PanelPanel Size15.6" FHD Led
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness600 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65

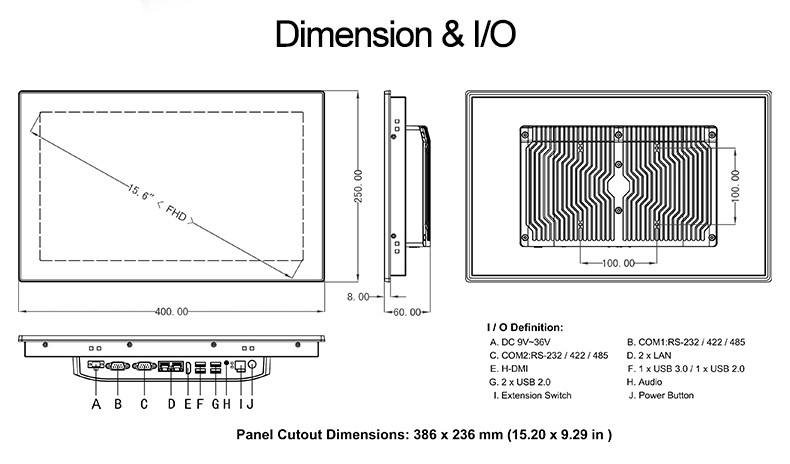

    Product Dimension400 x 250 x 60 mm
    Cut-out Size386 x 236 mm
    Packing Size460 x 180 x 400 mm
    Gross Weight7 KG
    Power and EnvironmentOperating Temperature-20~70°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC IN 9V~36V
    Power Consumption≦30W

    15.6 Inch Industrial Touch Panel PC15.6 Inch Industrial Touch Panel PC15.6 Inch Industrial Touch Panel PC


    Product Advantage

    1. Cordless motherboard design, high-end industrial panel PC

    2. Fully enclosed design, the whole PC is dustproof.

    3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.

    4. Industrial LCD panel, wide viewing angle, high nits, true color.

    5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

    6. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.

    7. High performance motherboard, 7x24 continuous operation.

    Attention of warranty
    1. First-year warranty: by free


    2. 2nd to 3rd-year warranty: maintaining by some charges.


    Advantages

    1. High reliability, continuous production, and decreasing failure rate.

    2. Intel® Core I3/I5/I7 optional, very suitable for your various demands.

    3. Support hardware reset (256 level, 0-255 sec)

    4. Expanded display for Multi-task, Electricity Boot.

    5. Work well in the industrial environment.

    6. Aluminum alloy enclosure, fanless design for high heat dissipation.
