RK3288 Android Touch Panel PC

    Buy cheap RK3288 Android Touch Panel PC from wholesalers

    Buy cheap RK3288 Android Touch Panel PC from wholesalers
    • Buy cheap RK3288 Android Touch Panel PC from wholesalers
    • Buy cheap RK3288 Android Touch Panel PC from wholesalers
    • Buy cheap RK3288 Android Touch Panel PC from wholesalers

    RK3288 Android Touch Panel PC

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-R010WAC
    Certification : IP65 FCC CE ROHS
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    RK3288 Android Touch Panel PC

    Android RK3288 20W 10.1" 400nits Android Industrial Panel Pc SCADA


    Feature

    1. 10.1" TFT LED, resolution 1280 x 800, Multi-Touch PCAP


    2. ARM RK3288 Cortex-A17 1.8G, 10 " android industrial pc

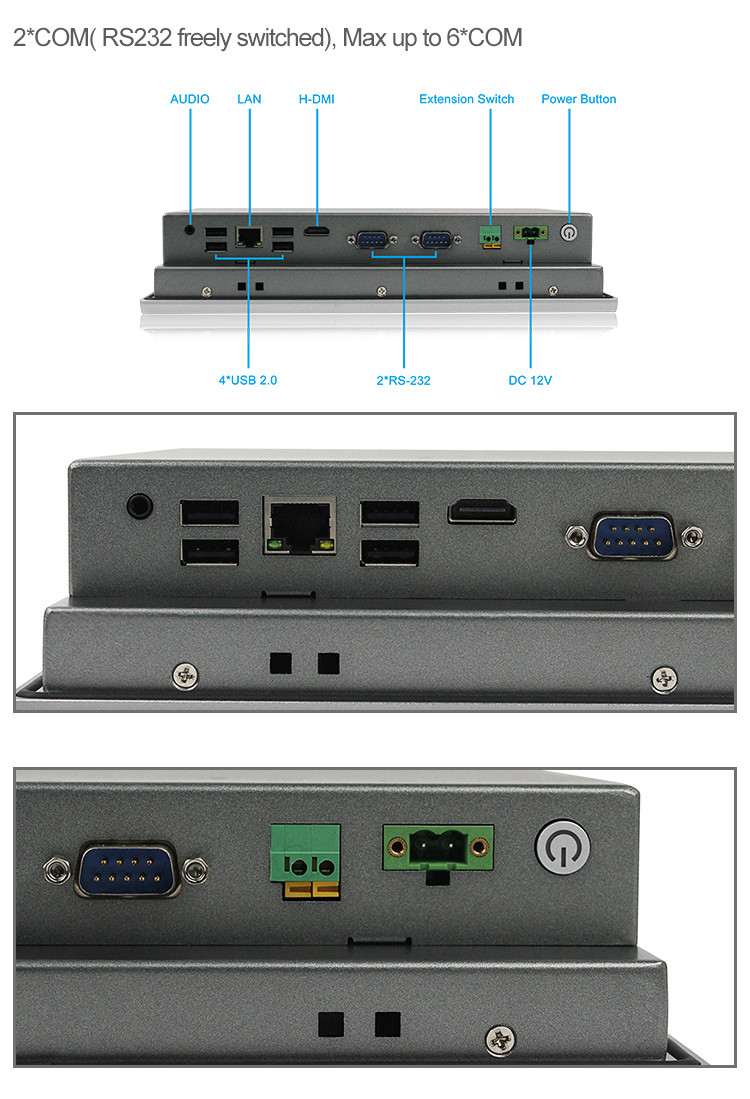

    3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

    4. Operating System: Android

    5. DC12V Input,(+9V~36V)wide voltage input optional

    Specification

    PPC-R010WAC
    SystemCPUARM RK3288 Cortex-A17 1.8 GHz
    Memory2G DDR3
    StorageEMMC 8G(16G Optional)
    GPUARM Mali-T764
    LanRTL 8211E 1000 Lan
    AudioRTL ALC662
    Operation SystemAndroid 5.1 / 7. 1 /9.0 / Ubuntu 12.04
    I / OH-DMI1 x H-DMI
    LAN1 x LAN
    USB4 x USB 2.0
    COM2 x RS232
    Audio1 x AUDIO
    Wireless NetworkWiFi / Bluetooth ( 4G / Optional )
    LCD PanelPanel Size10.1" Led
    Resolution1280 x 800
    Aspect Ratio16:10
    Display Brightness400 cd/m2
    Contrast Ratio900:1
    Backlight Lifetime30000 Hr (min.)
    Viewing Angle85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65 / IP66

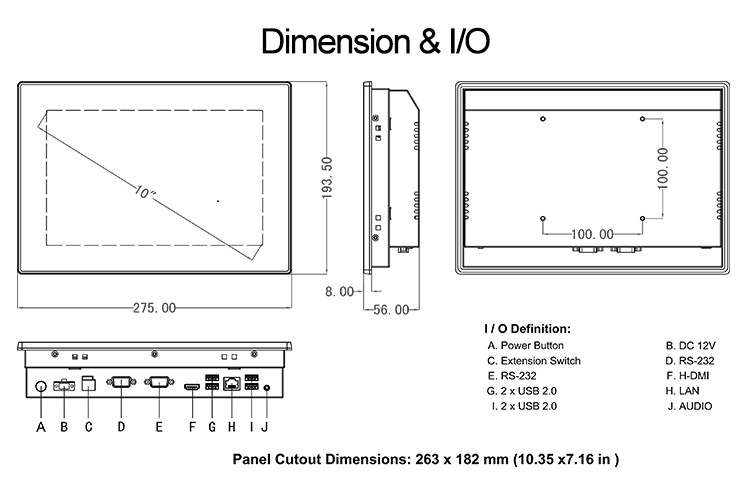

    Product Dimension275 x 194 x 56 mm
    Cut-out Size263 x 182 mm
    Packing Size450 x 170 x 350 mm
    Gross Weight5 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)
    Power Consumption≦20W

    RK3288 Android Touch Panel PCRK3288 Android Touch Panel PCRK3288 Android Touch Panel PC

    Industrial fully enclosed industrial computer, aluminum alloy shell, fully enclosed design, metal grid heat dissipation, strong configuration, rich interface design, all-weather operation, multiple USB interfaces, synchronous / asynchronous dual display, WiFi / Bluetooth support. It is widely used in industry and all aspects of people's life.

    1. Rich interface, everything: perfect interface design, whether it is high-definition HDMI, or professional serial port, everything.
    2. Core can be strong, with speed around life: equipped with Intel strong core processor, innovation speed, efficient operation.
    3. No fan mute, all aluminum heat dissipation: all aluminum shell, efficient heat dissipation scheme, shockproof, anti falling, no fan mute.
    4. Industrial dustproof, high and low temperature resistance: support - 10 ℃ to 60 ℃ wide temperature, especially suitable for industrial use.
    5. 7 * 24 hours of stable operation throughout the year: 24 hours of operation throughout the year, no stuck, no crash.
    6. Easy to deal with harsh environment: Farewell to industrial dust, high temperature, shaking trouble, strong adaptability.
    7. Application fields: industrial places, financial institutions, monitoring systems, medical equipment.
    8. Installation method: it has its own installation bracket, supports wall mounted, rack mounted, desktop, embedded and other installation methods, and can be flexibly fixed on the desktop, wall, etc. Save space, simple and fast installation.


    FAQ
    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.
    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.
    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.
    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
