    OEM Desktop Industrial Wifi Android Touch Panel PC Ip65 Waterproof

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-R156WAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    OEM Desktop Industrial Wifi Android Touch Panel PC Ip65 Waterproof

    OEM Ip65 Waterproof Desktop Industrial Grade Android Os Touch Panel Pc With Wifi

    Feature

    The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.


    1. 15.6" TFT LED with PCAP Touch


    2. ARM RK3288 Cortex-A17 1.8 GHz


    3. Multi ports for option: VGA/HDMI/LAN/USB/COM


    4. DC12V Input, (+9V~36V) wide voltage input optional


    5. -10°C ~ 60°C extended operating temperature


    6. IP65 Compliant Front Panel


    PPC-R156WAC
    SystemCPUARM RK3288 Cortex-A17 1.8 GHz
    Memory2G DDR3
    StorageEMMC 8G(16G Optional)
    GPUARM Mali-T764
    LanRTL 8211E 1000 Lan
    AudioRTL ALC662
    Operation SystemAndroid 5.1 / 7. 1 /9.0 / Ubuntu 12.04
    I / OH-DMI1 x H-DMI
    LAN1 x LAN
    USB4 x USB 2.0
    COM2 x RS232
    Audio1 x AUDIO
    Wireless NetworkWiFi / Bluetooth ( 4G / Optional )
    LCD PanelPanel Size15.6" FHD Led
    Resolution1920 x 1080
    Aspect Ratio16:9
    Display Brightness600 cd/m2
    Contrast Ratio1000:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65
    Product Dimension400 x 250 x 58 mm

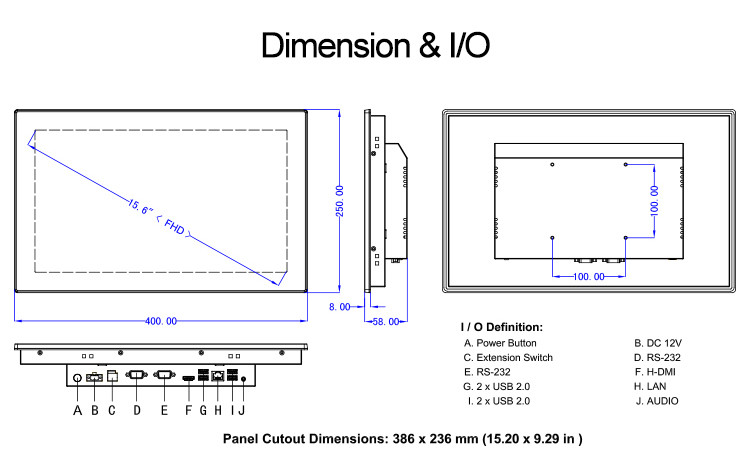

    Cut-out Size386 x 236 mm
    Packing Size460 x 180 x 400 mm
    Gross Weight7 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)
    Power Consumption≦20W


    OEM Desktop Industrial Wifi Android Touch Panel PC Ip65 WaterproofOEM Desktop Industrial Wifi Android Touch Panel PC Ip65 WaterproofOEM Desktop Industrial Wifi Android Touch Panel PC Ip65 Waterproof

    Packing List:

    1x PPC-R156WAC Series Industrial Panel PC

    1x Utility DVD Driver

    8x Embedded Buckles

    1x Power Adaptor


    Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device


    FAQ

    1. Q: Are you a manufacturer or trading company?
    A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

    2. Q: Do you provide ODM/OEM or customized service?
    A: Yes,we support OEM&ODM service, let you get the products you want exactly.

    3. Q: What certifications do you have?
    A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

    4. Q: How long is the warranty?
    A: Our factory promised warranty is 1 year.

    5. Q:What is the lead time?
    A: 3 business days for samples order, 15 business days for mass production.

    6. Q: What is the MOQ?
    A: Sample testing is acceptable, the price is negotiable for bulk order.
