    Wall Mounted 4*USB Android Touch Panel PC 12 Inch Size RoHS Approval

    Ask Lasest Price
    Brand Name : QYT
    Model Number : PPC-R012SAC
    Certification : CE, FCC, RoHS, IP65
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 5000 Set/Sets per Month
    Delivery Time : 3-10 Business Days
    • Product Details
    • Company Profile

    Wall Mounted 4*USB Android Touch Panel PC 12 Inch Size RoHS Approval

    12" wall mounted ip65 dustproof industrial android touch panel pc with 4*USB

    Feature

    The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.


    1. Aluminium alloy front panel, front IP65 waterproof


    2. 12.1" TFT LED, resolution 800×600, capacitive touch


    3. ARM RK3288 Cortex-A17 1.8G, industrial panel pc


    4. Multi ports for option: VGA/HDMI/LAN/USB/COM


    5. DC12V Input, (+9V~36V) wide voltage input optional


    PPC-R012SAC
    SystemCPUARM RK3288 Cortex-A17 1.8 GHz
    Memory2G DDR3
    StorageEMMC 8G(16G Optional)
    GPUARM Mali-T764
    LanRTL 8211E 1000 Lan
    AudioRTL ALC662
    Operation SystemAndroid 5.1 / 7. 1 /9.0 / Ubuntu 12.04
    I / OH-DMI1 x H-DMI
    LAN1 x LAN
    USB4 x USB 2.0
    COM2 x RS232
    Audio1 x AUDIO
    Wireless NetworkWiFi / Bluetooth ( 4G / Optional )
    LCD PanelPanel Size12.1" Led
    Resolution800 x 600
    Aspect Ratio4:3
    Display Brightness400 cd/m2
    Contrast Ratio800:1
    Backlight Lifetime50000 Hr (min.)
    Viewing Angle80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D )
    Touch screenTouch Screen TypeMulti-Touch PCAP
    Transmittance>90%
    Response Time<5ms
    Surface Hardness≥7H
    Supply Voltage5.0V DC
    Touch Life≧ 3000W
    InstitutionalMaterialHigh-strength Al-alloy, support IP65
    ColorGray
    VESA MountingVESA: 100 x 100 mm
    Waterproof RateIP65

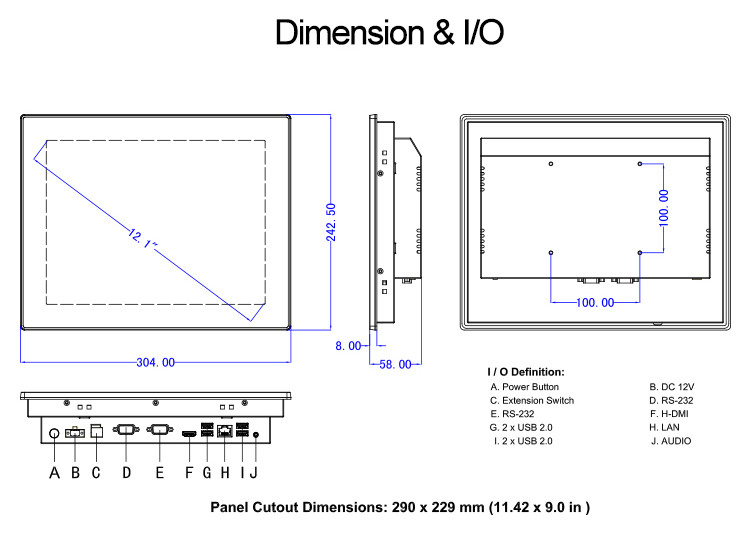

    Product Dimension304 x 243 x 58 mm
    Cut-out Size290 x 229 mm
    Packing Size450 x 170 x 350 mm
    Gross Weight5 KG
    Power and EnvironmentOperating Temperature-10~60°C
    Storage Temperature-20~80°C(-22~176°F)
    Relative Humidity5%~95%@40°C, non-condensing
    Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    External Power SupplyAC 100 - 240V~50/60Hz,1.5A
    Working VoltageDC 12V / optional(+9V~36V)
    Power Consumption≦20W

    Wall Mounted 4*USB Android Touch Panel PC 12 Inch Size RoHS ApprovalWall Mounted 4*USB Android Touch Panel PC 12 Inch Size RoHS ApprovalWall Mounted 4*USB Android Touch Panel PC 12 Inch Size RoHS ApprovalWall Mounted 4*USB Android Touch Panel PC 12 Inch Size RoHS Approval

    Applications


    Our industrial multi-touch panel PCs are reliable, durable, and provide industrial OEMs and machinery manufacturers with vast selection of industrial embedded computing technologies and solutions, widely used for HMI automation, information and communication applications.


    Our Advantage

    1. Experience

    QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


    2. Wide products line

    7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.


    3. Customization functions

    It offers rich of interface to meet csutomers needs.


    4.Widely useage environment

    QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
